Guide Sensmart Hammer II professional thermal imaging camera in black and red, shown at a three-quarter angle.

Guide Sensmart H6S Hammer II Thermal Imaging Camera with ApexVision

Professional high-resolution thermal imaging system for demanding electrical, industrial and building inspections.

Resolve smaller or more distant targets: 640 × 480 native infrared resolution with ApexVision S1 enhancement
Distinguish subtle temperature differences: 15mK thermal sensitivity helps reveal small thermal variations
Scan smoothly in real time: 50Hz imaging provides fluid viewing while inspecting equipment
Use the right lens for each job: interchangeable configurations for close-up, general, wide-area and long-distance inspections

Found this camera and lens configuration available for less from another authorised UK retailer? Send us the details and we will try our best to match the price - we normally can.

Free tracked and insured delivery is included with all camera orders to standard UK addresses.

Corey Technical also manages import VAT, customs clearance and duties - where applicable - so you will not receive an unexpected import bill.

Speak directly with Corey Technical for product comparisons, lens selection, quotations, order updates and after-sales support.

We aim to respond promptly and remain your point of contact throughout your purchase.

Contact Corey Technical

Model: H6S · Product code: GS-H6S-25

£8,985.00 incl. VAT £7,487.50 excl. VAT

Shipping calculated at checkout.

Available to order

Typical UK delivery: 7–10 working days. Longer lead times may apply to selected configurations.

Lens Configuration

Price includes the H6S camera and selected lens configuration.

Request a formal quotation

Unsure which lens you need? Get configuration advice →

round navy blue circle with white check mark

Quotations and VAT invoices available

UK-based pre and post-sale support

Secure card and bank-transfer payment

Manufacturer-backed warranty assistance

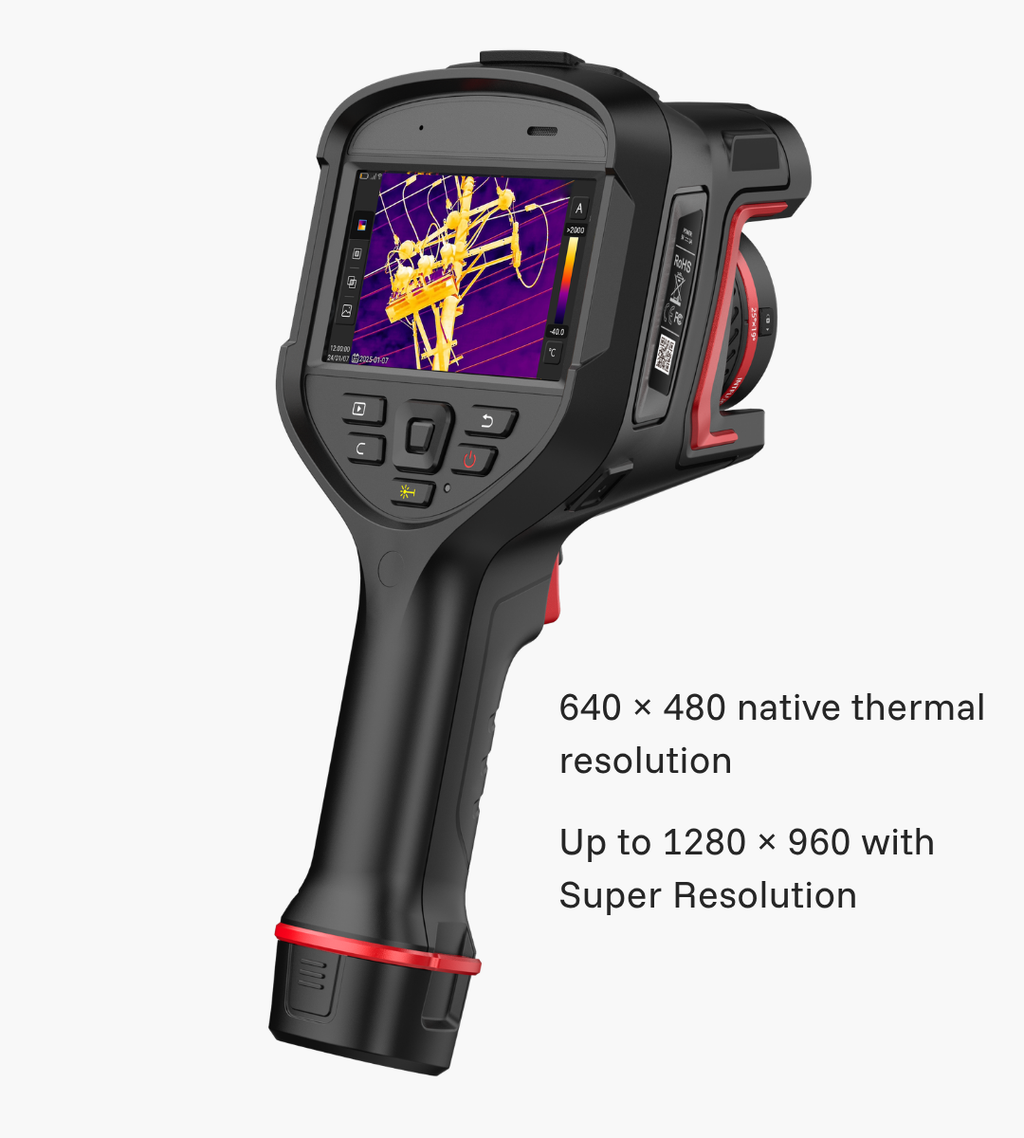

640 × 480 native infrared resolution
ApexVision S1 architecture with super-resolution output up to 1280 × 960
Adjustable emissivity with preset and custom values
Measurement corrections: Reflected temperature, atmospheric temperature and transmission, humidity, target distance and external optics
≤ 15 mK thermal sensitivity
Confirmed 50 Hz infrared frame rate
Temperature measurement coverage: −40°C to 650°C (up to 2,000°C with a RangeMax “wide-temperature” lens configuration)
Measurement accuracy: ±2°C or ±2%, whichever is greater
Manual, automatic, touch-to-focus, continuous and laser-assisted autofocus
4.3-inch, 800 × 480 touchscreen display
Laser ranging from 0.1m to 40m
Up to 5 hours’ operating time per battery
IP54 protection and 2m drop-tested construction
64 GB internal storage with external SD-card support

Field of view, focal length, spatial resolution and distance-to-spot ratio depend on the selected lens. See the lens guide below.

Guide H6S Hammer II thermal camera
Selected lens configuration
Front lens cap and rear lens cover
Two rechargeable lithium-ion batteries
Desktop battery charger
Power adapter and plug set
USB-C to USB-C cable
USB-A to USB-C cable
USB-C to Ethernet adapter
64 GB SD card
Wrist strap and shoulder strap
Protective carrying bag
Hard protective case
Quick-start guide
Warranty card
Factory Inspection report
Manufacturer calibration certificate

Dispatch and delivery

Orders are dispatched, for free, directly from Guide Sensmart in China using DHL or UPS. Tracking is provided and a signature is required on delivery.

Where the camera is already available with the selected lens configuration fitted and calibrated, Guide will dispatch it within three working days of payment. Shipping from China to the UK then takes approximately 5 days.

Where the camera and lens are available separately but require configuration and calibration, the preparation lead time is approximately 30 days before shipment. If the required lens is not in stock, the combined production and calibration lead time may be up to 60 days.

The expected delivery window will be confirmed for your selected configuration.

Import charges

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

Returns

Contact Corey Technical before returning any product so we can ensure the correct process is followed and your return is handled as quickly as possible. Products must not be sent directly to Guide Sensmart without written return authorisation from us.

Change-of-mind and other non-fault returns may be requested within 14 calendar days of delivery. Products must be returned complete with all supplied packaging, accessories and documentation, and must not have been handled beyond what is reasonably necessary to inspect them.

If you believe the product has a manufacturing fault, contact us within 14 calendar days of delivery. Where a manufacturing defect is confirmed, Corey Technical will arrange the appropriate return, refund or replacement.

After this 14-day return period, faults affecting business purchases will be handled under the applicable manufacturer-backed warranty. Consumer cancellation rights and statutory rights relating to faulty, misdescribed or unsuitable goods remain unaffected.

We aim to make returns as straightforward and low-friction as possible, and our team will guide you through each step to minimise downtime.

Faults and warranty

Every H6S supplied by Corey Technical includes the following manufacturer-backed warranty cover:

Camera: 3 years
Infrared detector: 10 years
Supplied accessories, including the lens: 2 years

If a fault develops during the applicable warranty period, please contact hello@coreytechnical.co.uk with your order number, product serial number, a description of the issue and any supporting photographs or video. We will respond promptly and coordinate the next steps on your behalf.

Corey Technical manages the warranty process directly with Guide Sensmart, including assessment, repair or replacement where applicable. Once an authorised unit is received by Guide, eligible repairs or replacements are normally returned within seven working days. If a repair is expected to take longer, an estimated timescale will be provided within three working days.

All returns, repairs and replacements must be authorised in advance so we can ensure safe transit and the most efficient possible resolution.

Standalone operation

The H6S operates as a standalone thermal imaging camera. A computer or mobile app is not required to capture, analyse or store thermal images during an inspection.

Analysis and reporting software

Guide ThermoTools for Windows and the FocusIR app for iOS and Android are available at no additional charge, with no ongoing subscription.

ThermoTools supports detailed thermal-image analysis and report preparation. FocusIR supports compatible mobile viewing, image transfer and analysis workflows.

Downloads

For assistance with setup, software or product operation, contact hello@coreytechnical.co.uk. Corey Technical will liaise with Guide Sensmart where manufacturer input is required.

Is the H6S right for your work?

The H6S is the highest-resolution model in Guide’s Hammer II range. Its 640 × 480 infrared detector captures approximately 78% more native detector pixels than the H4S, providing greater detail when inspecting small or distant targets and more flexibility when reviewing, cropping or enlarging images.

Combined with 15mK thermal sensitivity, a confirmed 50Hz frame rate and interchangeable lens configurations, it is best suited to professional thermographers, utility teams and industrial inspectors who regularly work at distance or require the most detailed thermal output available in the range.

Well suited to:

Substations, switchgear and electrical infrastructure
Overhead lines, outdoor equipment and other distant targets
Small electrical or mechanical components inspected from a safe working distance
Solar farms and large industrial sites where targets cannot always be approached closely
Detailed predictive-maintenance and condition-monitoring programmes
Professional thermography reports requiring extensive cropping or large-format images

Consider the H4S if:

Most inspections take place at close to moderate working distances
480 × 360 native resolution provides sufficient detail for your targets
You want a high-resolution all-rounder without paying for the H6S’s maximum detector resolution
Long-distance or heavily cropped inspection images are only an occasional requirement

Consider the H3+S if:

Nearby, general-purpose inspection forms most of your work
384 × 288 native resolution provides sufficient detail
Minimising the initial investment is more important than additional image detail and cropping flexibility

Compare Hammer II models All Guide cameras

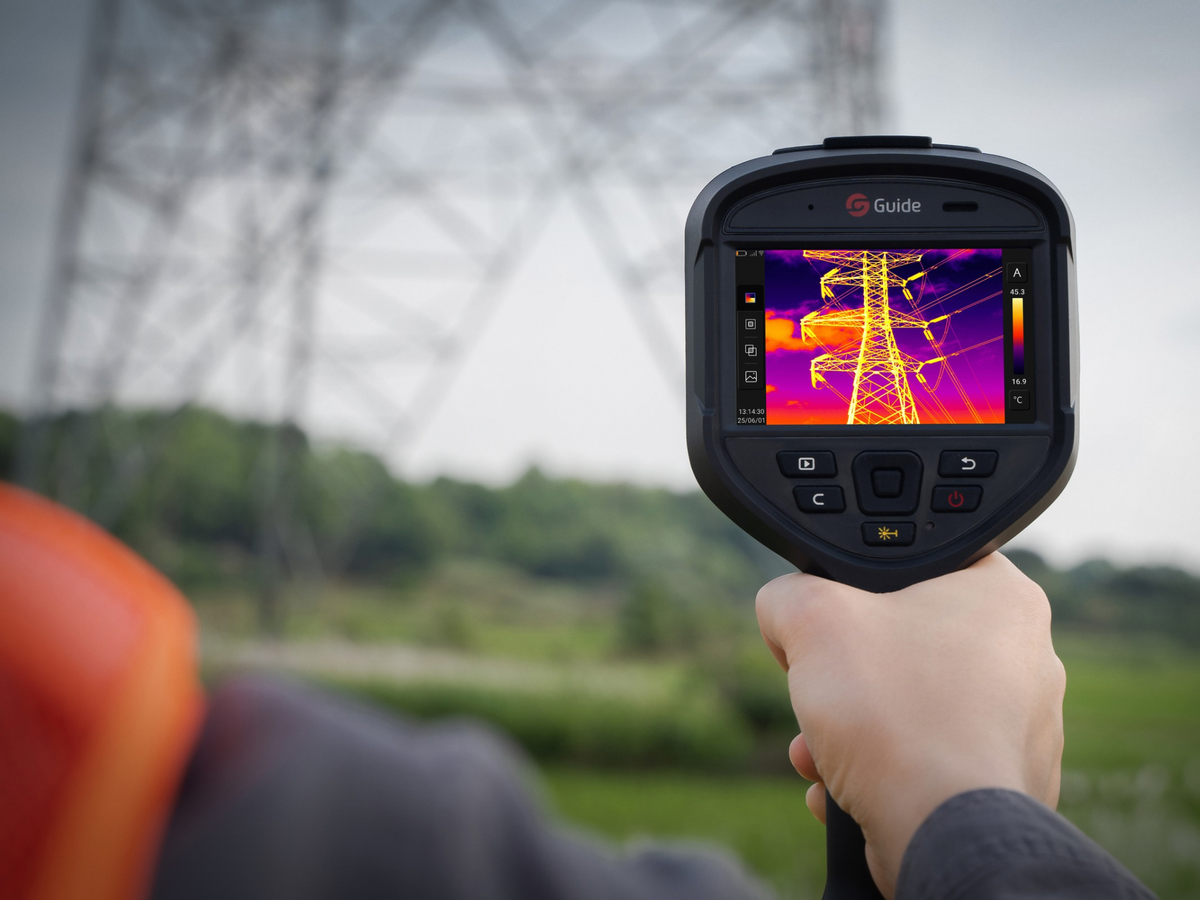

Utility engineer using a Guide Hammer II thermal camera to inspect overhead power lines and transmission infrastructure.

Choose the right lens configuration

Lens choice determines how much of the scene is visible and how many detector pixels are placed on the target at a given distance. Wider lenses show more of nearby scenes, while narrower lenses provide more spatial detail on smaller or more distant targets. No single configuration is best for every application.

Need multiple lenses or a replacement accessory? Contact us before ordering so compatibility and any calibration requirements can be confirmed.

Fixed field-of-view lenses

Choose between a wider view of the scene and greater spatial detail on smaller or more distant targets.

Wide-angle 44°

Best for: Professional building surveyors, HVAC engineers and industrial or electrical inspectors who need maximum image detail across large nearby targets, room interiors, switchboards or plant in confined spaces.

Benefit: Gives the H6S its widest view and shortest working distance while its 640 × 480 detector retains substantially more detail across the scene than lower-resolution Hammer II models.

Consideration: It places fewer detector pixels on small or distant targets than the 25°, 15° or 7° options.

Field of view: 44° × 33°

Minimum focus: 0.1m

D:S ratio: 833:1

Temperature range: −40°C to 650°C

Standard 25°

Best for: Professional thermographers, utility teams, electrical contractors and industrial maintenance engineers carrying out a varied inspection workload where high native detail is important.

Benefit: The most balanced one-lens H6S configuration for field of view, working distance and target detail.

Consideration: Choose a specialist lens if most work involves confined spaces, very small targets or longer inspection distances.

Field of view: 25° × 19°

Minimum focus: 0.15m

D:S ratio: 1471:1

Temperature range: −40°C to 650°C

Medium telephoto 15°

Best for: Utility, substation, solar and industrial inspectors assessing smaller connections, components or mechanical assets from a moderate stand-off distance.

Benefit: Places substantially more of the H6S's 640 × 480 detector pixels on the target without the very narrow framing of the 7° lens.

Consideration: The narrower view is less efficient for broad surveys and the lens requires at least 1m focusing distance.

Field of view: 15° × 11°

Minimum focus: 1m

D:S ratio: 2439:1

Temperature range: −40°C to 650°C

Telephoto 7°

Best for: Utility, power-network, solar and industrial specialists inspecting overhead lines, substation components or other small and inaccessible targets from longer distances.

Benefit: Delivers the greatest spatial detail and distance-to-spot ratio available on the H6S, making full use of its 640 × 480 detector for demanding long-distance inspections.

Consideration: The very narrow view and 3m minimum focusing distance make it unsuitable for overview or nearby inspection work.

Field of view: 7° × 5°

Minimum focus: 3m

D:S ratio: 5263:1

Temperature range: −40°C to 650°C

Macro configuration

Designed specifically for very small components at a controlled close working distance.

Macro

Best for: Electronics engineers, R&D teams and quality-control specialists inspecting circuit boards, assemblies and other very small components.

Benefit: Combines the H6S detector with 3× magnification to provide 37.8µm spatial resolution across a 24.2 × 18mm viewed area.

Consideration: It requires a fixed 50mm working distance and is intended for controlled close-up work rather than general handheld inspections.

Viewed area: 24.2 × 18mm

Working distance: 50mm

Spatial resolution: 37.8µm

Magnification: 3×

Wide-temperature configurations

RangeMax wide-temperature lenses extend measurement capability to 2,000°C. They use the same field of view as their corresponding ordinary lenses and are only necessary when targets may exceed 650°C.

Up to 2,000°C

Wide-temperature standard 25°

Best for: Process, metallurgy and maintenance engineers inspecting furnaces, kilns, foundries, refractory linings and other high-temperature industrial assets at close to moderate distances.

Benefit: Combines the H6S's balanced general-purpose view and high native detail with measurement capability up to 2,000°C.

Consideration: It provides the same spatial detail as the ordinary Standard 25° lens and is only necessary when targets may exceed 650°C.

Field of view: 25° × 19°

Minimum focus: 0.15m

D:S ratio: 1471:1

Temperature range: −40°C to 2,000°C

Up to 2,000°C

Wide-temperature medium telephoto 15°

Best for: Process, refractory, metallurgy and condition-monitoring specialists measuring smaller high-temperature targets from a moderate stand-off distance.

Benefit: Places more of the H6S detector on the target while extending measurement capability up to 2,000°C.

Consideration: It retains the narrower scene and 1m minimum focusing distance of the ordinary 15° lens.

Field of view: 15° × 11°

Minimum focus: 1m

D:S ratio: 2439:1

Temperature range: −40°C to 2,000°C

Up to 2,000°C

Wide-temperature telephoto 7°

Best for: Metallurgy, refractory and high-temperature process specialists measuring small, distant furnace, kiln or process-line targets that may exceed 650°C.

Benefit: Combines the H6S's greatest long-distance spatial detail with measurement capability up to 2,000°C.

Consideration: The 7° view and 3m minimum focusing distance make it a specialist option for known distant targets, not general surveys.

Field of view: 7° × 5°

Minimum focus: 3m

D:S ratio: 5263:1

Temperature range: −40°C to 2,000°C

Dual field-of-view configurations

DFOV configurations provide two fixed optical fields of view in one lens configuration. They offer more flexibility without providing continuous optical zoom.

Guide H6S standard and wide-angle dual field-of-view lens

DFOV standard 25° + wide-angle 44°

Best for: Professional thermographers, building surveyors, HVAC engineers and industrial or electrical teams moving between general inspections, confined spaces and large nearby assets.

Benefit: Switches between the balanced 25° view and wide 44° view without changing lenses, while retaining the H6S's high native detail in both modes.

Consideration: Neither view increases detail on distant targets, and the TwinView wide setting has a 0.15m published minimum focus.

Fields of view: 25° × 19° / 44° × 33°

Minimum focus: 0.15m / 0.15m

D:S ratio: 1471:1 / 833:1

Temperature range: −40°C to 650°C

Guide H6S standard and medium telephoto dual field-of-view lens

DFOV standard 25° + medium telephoto 15°

Best for: Utility, substation, electrical and industrial maintenance professionals who need an overview and closer thermal detail on smaller or moderately distant targets.

Benefit: Switches between an all-purpose 25° view and a more detailed 15° view without changing lenses, making it the most versatile H6S configuration for mixed-distance inspection work.

Consideration: It does not provide the wide coverage of the 44° lens or the long-distance reach of the dedicated 7° configuration.

Fields of view: 25° × 19° / 15° × 11°

Minimum focus: 0.15m / 1m

D:S ratio: 1471:1 / 2439:1

Temperature range: −40°C to 650°C

Unsure which lens is appropriate? Tell us the approximate target size and working distance, and we’ll help identify the most suitable configuration before ordering.

Ask for lens advice

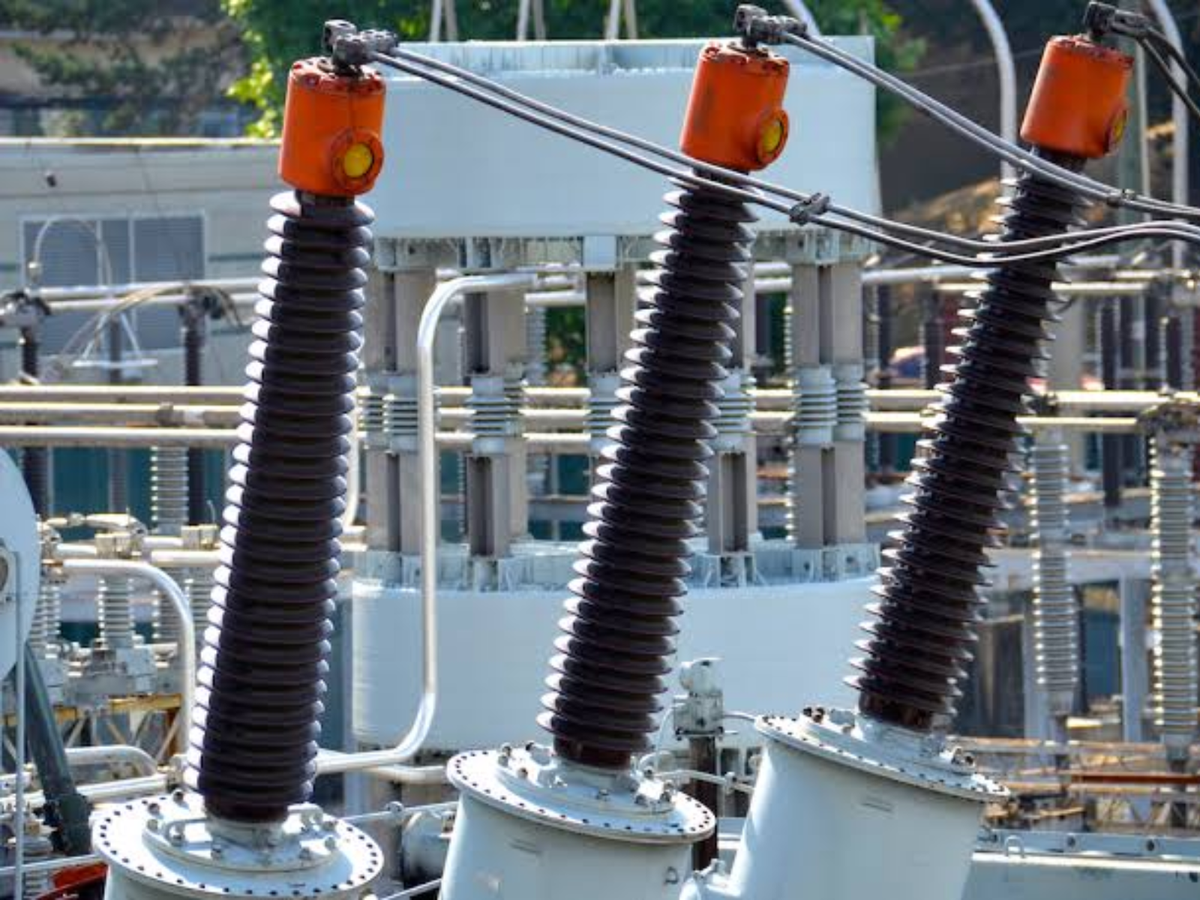

Visible image: Three high-voltage bushing and terminal assemblies in an outdoor electrical substation.

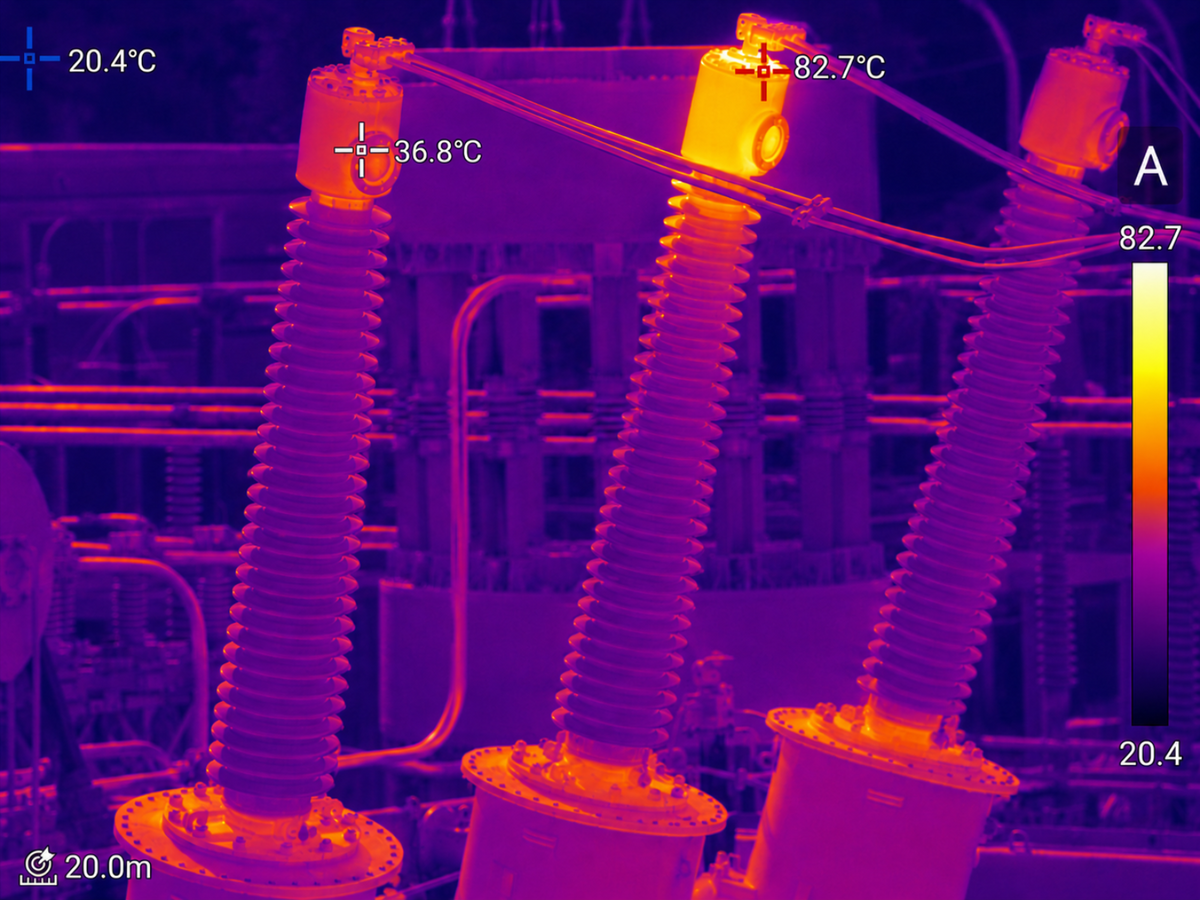

Thermal image: Guide Hammer II H6S thermogram showing an 82.7°C hotspot at the centre-phase upper electrical terminal.

Maximum-detail, responsive thermal imaging

The H6S combines a 640 × 480 native infrared detector, 15mK thermal sensitivity and a confirmed 50Hz frame rate to provide the highest native thermal-image detail in the Hammer II range.

Resolve small or distant targets

The 640 × 480 detector contains approximately 78% more native pixels than the H4S, helping separate smaller features such as terminal connections while providing greater flexibility when cropping or enlarging images.

Distinguish subtle temperature differences

15mK thermal sensitivity helps reveal small temperature variations between comparable components and developing thermal patterns against the surrounding equipment.

Scan and focus efficiently

The confirmed 50Hz frame rate keeps the live image fluid while scanning substation equipment or other distant assets. Manual, automatic, touch-to-focus, laser-assisted and continuous autofocus options help establish a clear image for measurement.

Generate higher-detail output

ApexVision S1 super-resolution produces enhanced thermal output up to 1280 × 960 from the camera’s native 640 × 480 detector, providing additional detail for review and professional reporting.

Guide Hammer II "what's included" image showing charging cables, lens caps, wrist and shoulder straps, extra batteries, battery charging cradle, SD card, mains plug adapters.

Everything you need to start inspecting

The H6S is supplied as a complete professional kit, with your selected lens configuration calibrated before dispatch.

H6S Hammer II thermal camera
Selected lens configuration
Front lens cap and rear lens cover
Two rechargeable lithium-ion batteries
Desktop battery charger
Power adapter and plug set
USB-C to USB-C cable
USB-A to USB-C cable
USB-C to Ethernet adapter
64 GB SD card
Wrist strap and shoulder strap
Protective carrying bag
Hard safety case
Quick-start guide
Warranty card
Inspection report
Calibration certificate

Standalone in the field. Powerful when connected.

Standalone operation

Capture, review and store thermal images and video directly on the camera without requiring a computer or mobile app.

ThermoTools: ThermoTools thermal analysis software displayed on a desktop monitor

ThermoTools for Windows

Free desktop software for detailed thermal-image analysis and professional report preparation, with no ongoing subscription.

FocusIR: FocusIR mobile thermal imaging app displayed on a smartphone

FocusIR for mobile

Free iOS and Android app supporting mobile viewing, image transfer and compatible analysis workflows.

Downloads

Hammer II user manual Hammer II quick-start guide H6S product leaflet and specifications Hammer II lens selection chart

ThermoTools for Windows FocusIR for iOS FocusIR for Android

A simple line-drawn icon of a sealed package with an airplane above it and location pins labeled CN and UK on either side, on a white background.

Tracked delivery

Orders are dispatched directly from Guide Sensmart using DHL or UPS. Tracking is provided and a signature is required on delivery.

Confirmed lead times

Orders normally arrive in 7–10 working days. Certain lens configurations may require a 30–75 day lead time. Contact us to confirm.

A minimalist black line icon of a document with a folded corner, a globe symbol, a British pound symbol crossed out with a diagonal pen, and a small box outline on a plain white background.

No import charges

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

Manufacturer-backed protection

All orders include a 3-year camera warranty, 10-year infrared-detector warranty and 2-year warranty on supplied accessories.

Guide Hammer II H6S FAQs

Clear answers to the most common questions about selecting, ordering and using the H6S.

The H6S is the highest-resolution model in the Hammer II range. Its 640 × 480 infrared detector captures approximately 78% more native detector pixels than the H4S, providing greater detail on small or distant targets and more flexibility when reviewing, cropping or enlarging images.

It is particularly well suited to utility, substation, solar, industrial and specialist thermography work where targets cannot always be approached closely or highly detailed reporting is required. Consider the H4S if you want a high-resolution all-rounder but do not routinely need the H6S’s maximum native detail.

Choose according to the size of the target and the distance from which it will be inspected.

The 25° Standard lens is the most balanced general-purpose option. The 44° Wide-angle lens suits large nearby targets and confined spaces. The 15° Medium-telephoto lens provides greater detail at moderate distances, while the 7° Telephoto lens is designed for small or inaccessible targets inspected from substantially farther away. The Macro lens is intended for very small components at a fixed close working distance.

TwinView DFOV configurations provide two selectable optical fields of view in one lens. RangeMax configurations are only necessary when targets may exceed 650°C. If you are unsure, send us the approximate target size and working distance before ordering.

Yes. The H6S uses interchangeable infrared lenses, but each lens must be compatible with the camera and correctly configured and calibrated for accurate temperature measurement.

We recommend ordering the configurations you expect to use from the outset. Contact Corey Technical before purchasing another lens so we can confirm compatibility, calibration requirements and availability.

Standard H6S lens configurations provide selectable measurement ranges of −40°C to 150°C and 0°C to 650°C, together covering −40°C to 650°C.

RangeMax wide-temperature configurations add a 500°C to 2,000°C measurement range. These specialist configurations are only necessary when target temperatures may exceed 650°C.

The H6S contains a native 640 × 480 infrared detector. These are the physical detector measurements captured by the camera and provide the highest native thermal resolution in the Hammer II range.

ApexVision S1 super-resolution can generate enhanced output up to 1280 × 960 for review and reporting. It provides additional visual detail, but should not be treated as equivalent to a native 1280 × 960 detector. Lens selection and native resolution remain important when inspecting small or distant targets.

No. The H6S operates as a complete standalone thermal camera, allowing images and radiometric video to be captured, reviewed, analysed and stored directly on the device.

Guide ThermoTools for Windows supports more detailed analysis and report preparation, while the FocusIR app supports compatible mobile viewing, transfer and analysis workflows. Both Thermotools and FocusIR are free to use. No ongoing subscription is required to operate the camera.

Yes. All Guide's thermal cameras and lens configurations available at Corey Technical are prepared by Guide Sensmart and supplied with a manufacturer calibration certificate.

The H6S will arrive with a calibration certificate and inspection report, along with the batteries, charger, cables, SD card, carrying case and other standard accessories. It is supplied ready for professional thermal inspection.

If your contracts or quality procedures require a particular accredited or UKAS-traceable calibration service, contact Corey Technical before ordering so the requirement can be checked and quoted separately.

Orders are dispatched directly from Guide Sensmart in China using DHL or UPS, with tracking and signature on delivery.

Available configurations normally arrive within 7–10 working days. Certain camera and lens combinations may require a 30–75 day lead time; the expected window will be confirmed for your selected configuration.

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

The H6S includes a 3-year manufacturer-backed camera warranty, a 10-year infrared-detector warranty and a 2-year warranty covering the selected lens and supplied accessories.

Corey Technical manages the warranty process with Guide Sensmart, including assessment, repair or replacement where applicable. Contact us before returning any equipment so the correct process can be arranged.

Contact Corey Technical within 14 days of delivery if you wish to request a non-fault return. The camera must be unused, complete and in its original condition with all packaging and accessories. Returns must be authorised before anything is sent.

If a fault develops, contact us with the order number, serial number and details of the issue. Faults outside the return period are handled through the applicable warranty, without affecting any statutory rights that apply to the purchase.

Need help before ordering?

Tell us your application, target size and working distance. We’ll help confirm the most suitable camera and lens configuration.

Ask for product advice Request a quote

See Guide Sensmart cameras in detail

Watch official Guide Sensmart videos covering the PT II and Hammer Series, from camera operation and measurement setup to Super Resolution and supplied equipment.
