Testo 883-2 Thermal Imaging Camera

Professional wide-angle thermal imaging and reporting system for building surveys, energy audits, HVAC diagnostics and facilities inspections.

Cover more of the scene in confined spaces: The 42° × 32° wide-angle lens captures walls, floors, ceilings and building services from shorter working distances
Reveal subtle thermal anomalies: <40 mK sensitivity helps identify insulation defects, thermal bridges, air leakage, moisture patterns and uneven heating
Document findings in high detail: 320 × 240 native infrared resolution is enhanced to 640 × 480 with Testo SuperResolution for closer analysis and clearer reports
Keep inspections organised from capture to report: SiteRecognition assigns images to the correct measurement location, with Testo IRSoft included for analysis and professional reporting

Found this camera and lens configuration available for less from another authorised UK retailer? Send us the details and we will try our best to match the price - we normally can.

Free tracked and insured delivery is included with all camera orders to standard UK addresses.

Corey Technical also manages import VAT, customs clearance and duties - where applicable - so you will not receive an unexpected import bill.

Speak directly with Corey Technical for product comparisons, lens selection, quotations, order updates and after-sales support.

We aim to respond promptly and remain your point of contact throughout your purchase.

Contact Corey Technical

Model: 883-2 · Product code: TESTO-8832-42

£4,185.00 incl. VAT £3,487.50 excl. VAT

Shipping calculated at checkout.

Available to order

Typical UK delivery: 1–5 working days. Longer lead times may apply to selected configurations.

Price includes the 883-2 camera and selected lens configuration.

Request a formal quotation

Unsure which lens you need? Get configuration advice →

round navy blue circle with white check mark

Quotations and VAT invoices available

UK-based pre and post-sale support

Secure card and bank-transfer payment

Manufacturer-backed warranty assistance

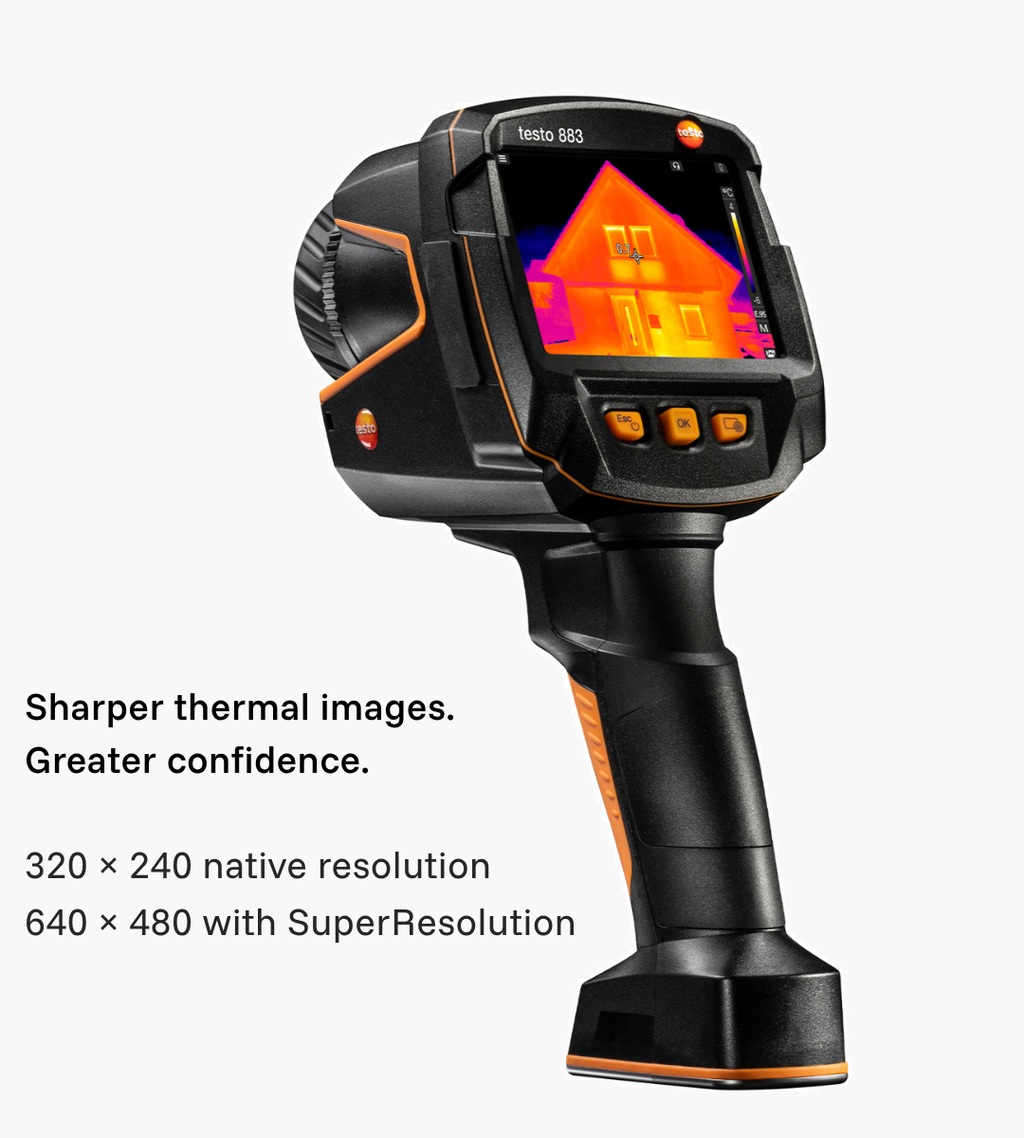

320 × 240 native infrared resolution
Testo SuperResolution output up to 640 × 480
<40 mK thermal sensitivity
27 Hz infrared frame rate
Temperature measurement range: −30°C to 650°C
Measurement accuracy: ±2°C or ±2% of the reading, whichever is greater

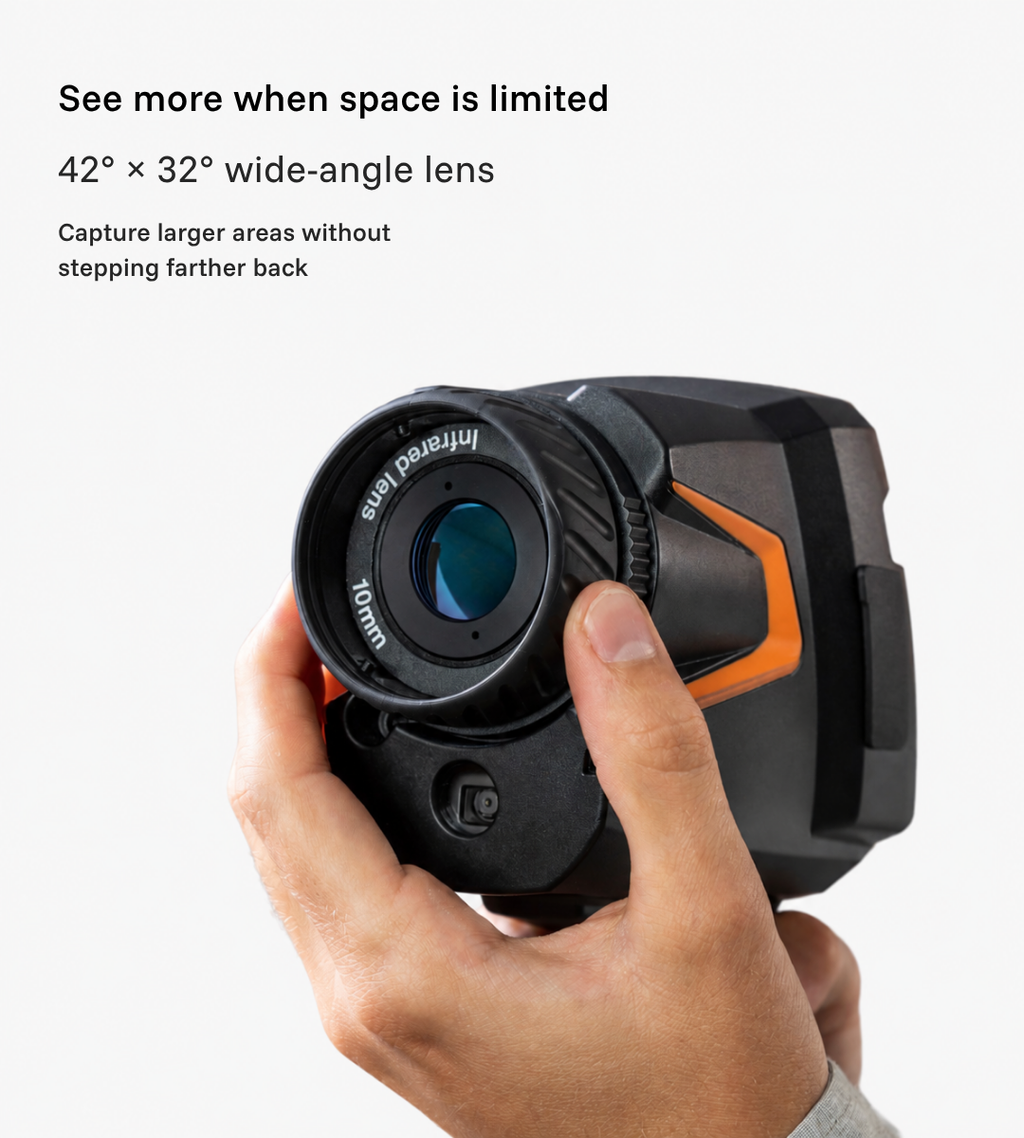

Supplied 42° × 32° wide-angle manual-focus lens with 2.3 mrad spatial resolution
Minimum focus distance of 0.1 m with the supplied lens

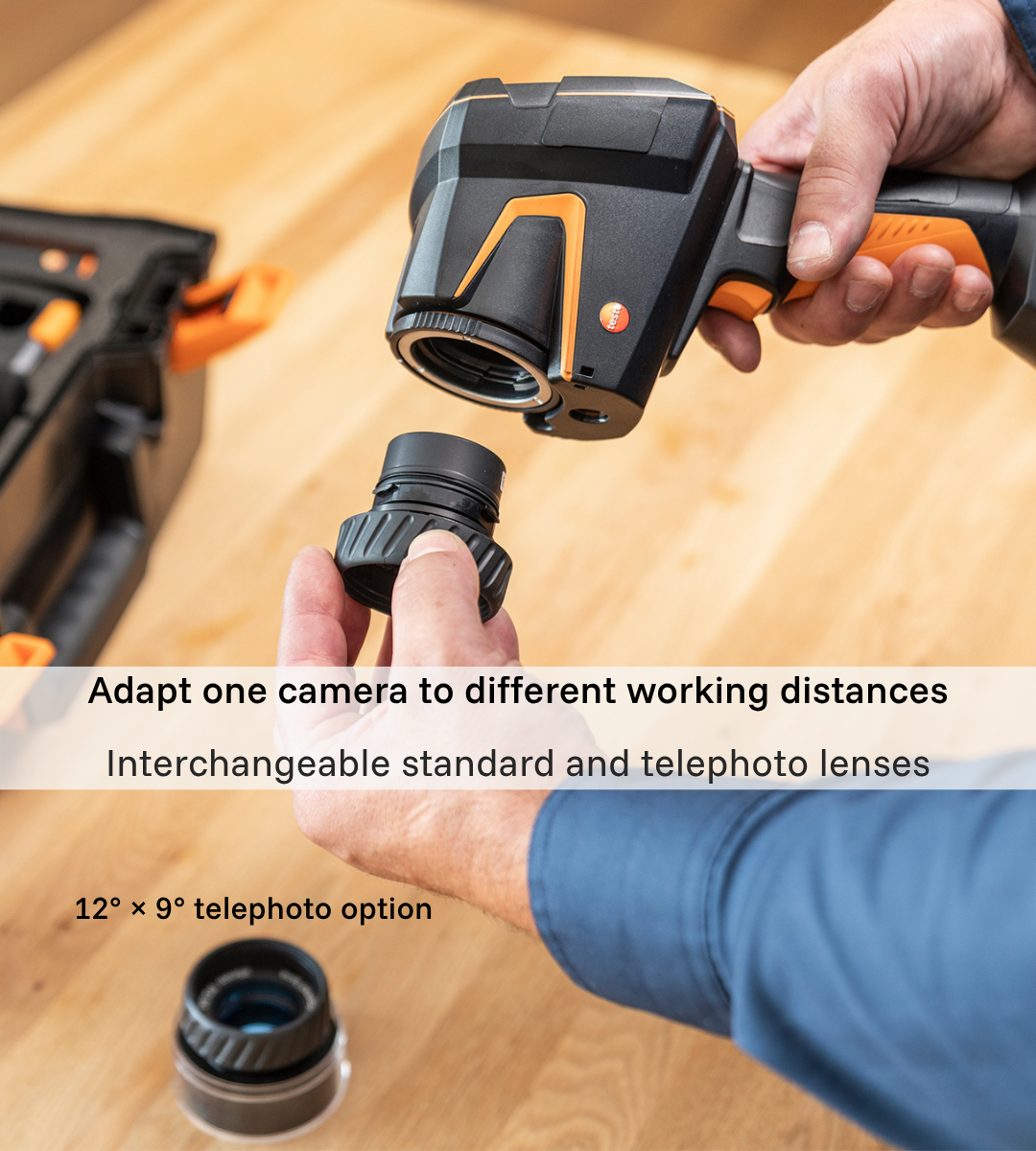

Optional 12° × 9° telephoto lens with 0.7 mrad spatial resolution

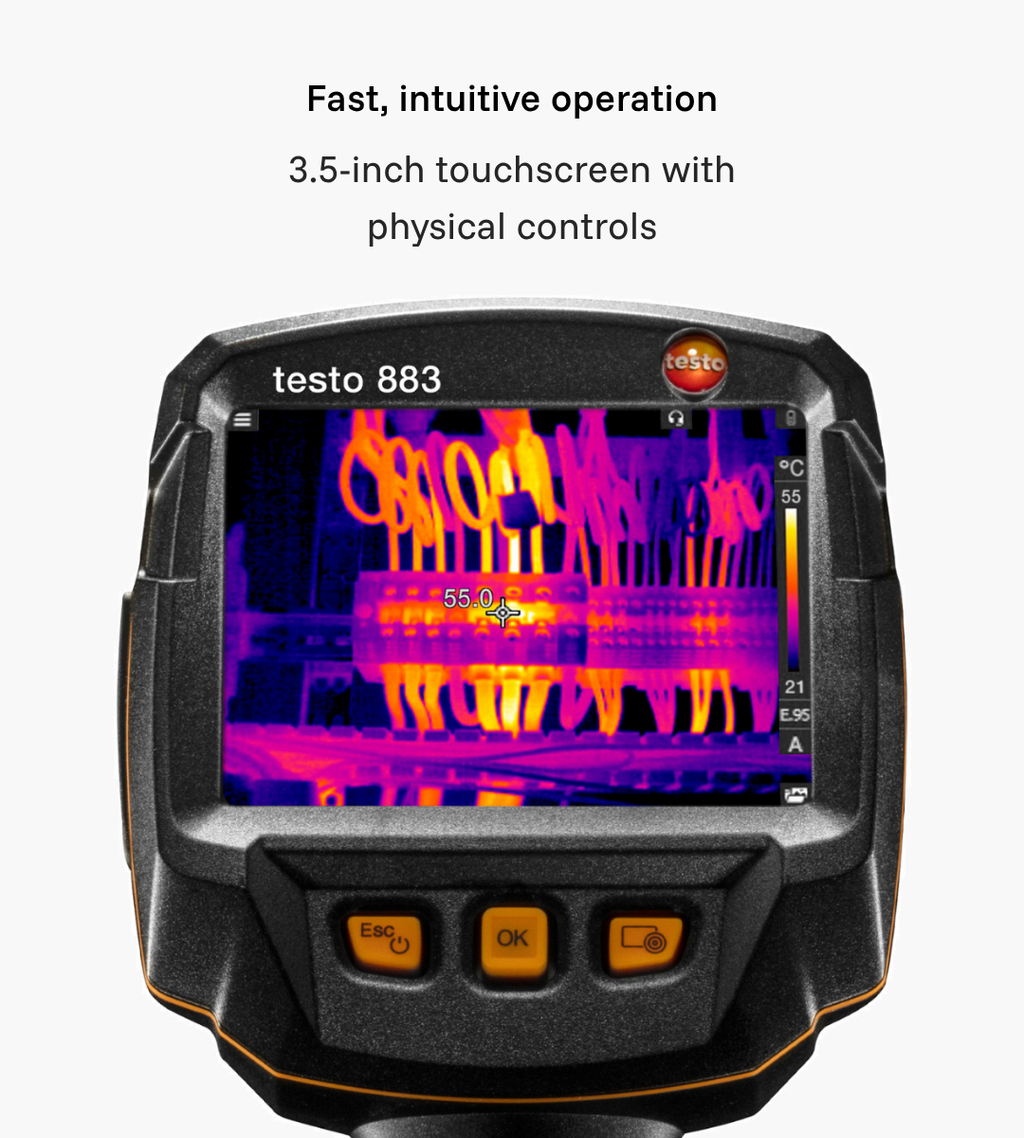

3.5-inch capacitive touchscreen with physical controls
5 MP visible-light camera and integrated laser marker
Up to five measurement points, hot/cold spot detection, Delta T, area measurement, alarms and isotherms

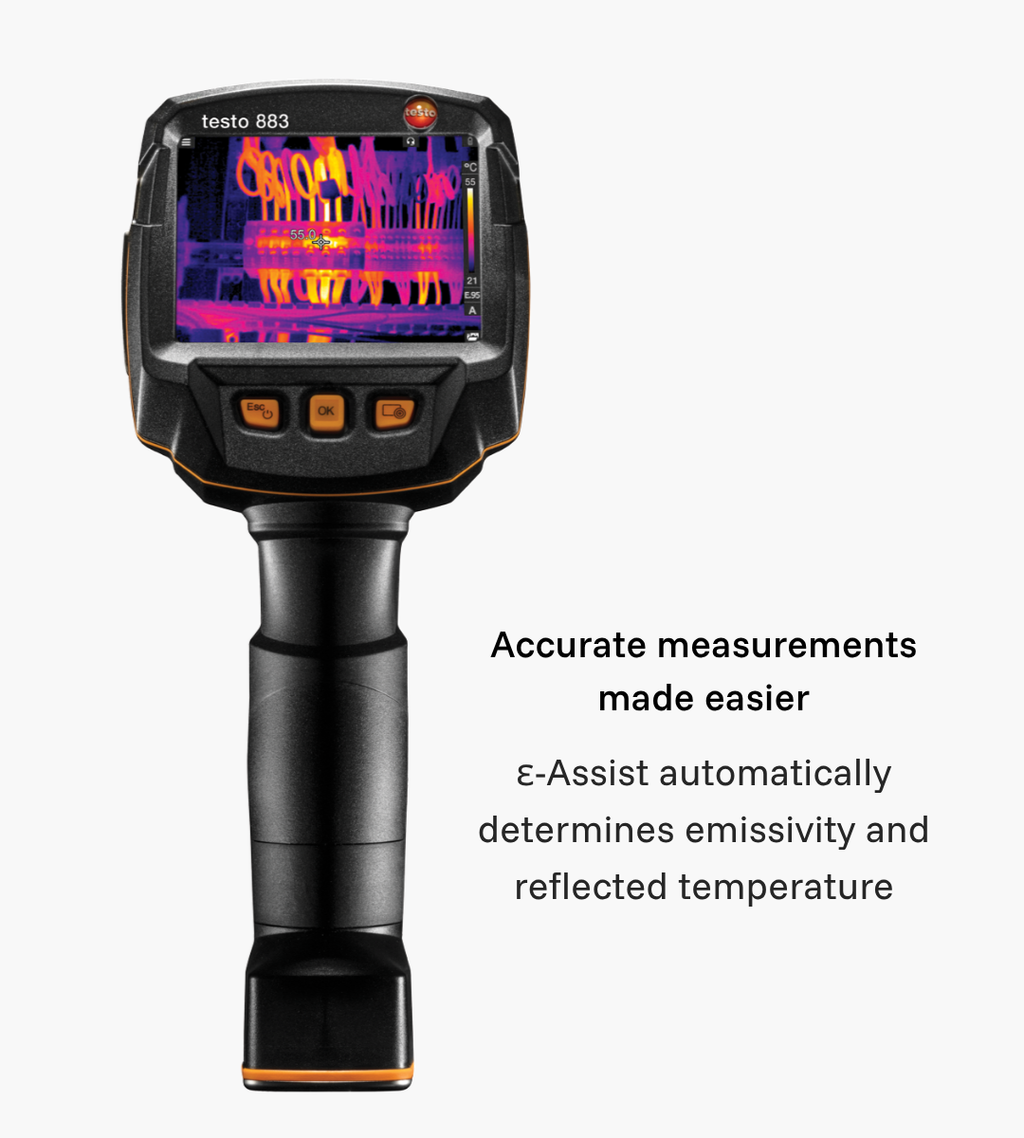

Testo ε-Assist for automatic emissivity recognition and reflected-temperature determination
Testo SiteRecognition for automatic measurement-location recognition and image organisation
Testo ScaleAssist for consistent, comparable thermal-image scaling
Wi-Fi, Bluetooth and USB-C connectivity
Connects with the Testo Thermography App for remote control, live viewing and on-site reports
Supports compatible Testo clamp meters and humidity probes via Bluetooth
5 GB internal storage with voice annotations
At least five hours’ operation from a replaceable rechargeable battery
IP54-rated protection
827 g including battery
Testo IRSoft included for thermal-image analysis and professional reporting

The supplied 42° × 32° wide-angle lens captures larger surfaces and complete areas from shorter working distances, making it particularly well suited to building surveys, energy audits, HVAC inspections and work in confined spaces. The optional 12° × 9° telephoto lens provides greater detail when inspecting smaller or more distant targets.

Testo 883-2 thermal imaging camera
42° × 32° standard lens
12° × 9° telephoto lens (dual-lens configuration only)
One rechargeable lithium-ion battery
Additional rechargeable battery (dual-lens configuration only)
USB-C charging cable and mains adapter
Desktop dual-battery charging station (dual-lens configuration only)
Carrying strap
Robust protective case
Quick-start instructions
Calibration protocol
Testo IRSoft professional analysis and reporting software (free download)

Dispatch and delivery

Orders are dispatched free of charge from within the UK using a tracked courier service.

Delivery to most UK mainland addresses typically takes 1–5 working days, subject to product availability. If the selected camera or lens configuration is not immediately available, we will confirm the expected delivery window before dispatch.

Tracking information will be provided once the order has been dispatched. If the equipment is required by a particular date, please contact Corey Technical before ordering so we can provide an honest availability and delivery estimate.

As Testo products are supplied from within the UK, there are no customs charges or import bills to pay on delivery.

Returns

Contact Corey Technical before returning any product so we can authorise the return, confirm the correct address and ensure it is handled as efficiently as possible. Products must not be sent directly to Corey Technical, or to Testo without written return authorisation from us.

Change-of-mind and other non-fault returns may be requested within 60 calendar days of delivery. Products must be returned complete, unmarked and undamaged, in a resalable condition and with all original packaging, accessories and documentation.

If you believe the product is faulty, damaged or incomplete, contact us as soon as possible. Corey Technical will coordinate the appropriate assessment and, where applicable, arrange a repair, replacement or refund.

Consumer cancellation rights and statutory rights relating to faulty, misdescribed or unsuitable goods remain unaffected.

We aim to make returns straightforward and low-friction, with clear communication throughout to help minimise disruption and downtime.

Faults and warranty

Every Testo 883-2 supplied by Corey Technical includes a two-year manufacturer warranty.

This can be extended to three years at no additional cost by registering the camera with Testo within 30 days of purchase. Registration must be completed by the customer within this period for the additional year of cover to apply.

If a fault develops during the applicable warranty period, contact hello@coreytechnical.co.uk with your order number, product serial number, a description of the issue and any supporting photographs or video.

Corey Technical will manage the process with Testo on your behalf, including assessment and repair or replacement where covered by the warranty. We will explain the next steps clearly and keep you updated throughout the process.

All returns, warranty assessments, repairs and replacements must be authorised in advance to ensure safe transit and the most efficient possible resolution.

Standalone operation

The Testo 883-2 operates as a standalone professional thermal imaging camera. A computer or mobile device is not required to capture, review, analyse or store thermal images during an inspection.

Analysis and reporting software

Testo IRSoft for Windows is included at no additional cost. It provides detailed thermal-image analysis, measurement adjustment and professional report creation.

Testo IRSoft is available for Windows. Mac users can use the Testo Thermography App on a compatible iPhone or iPad for mobile image transfer, analysis and reporting. Full IRSoft desktop functionality requires access to Windows.

Testo SiteRecognition helps organise repeat inspections by automatically assigning thermal images to the correct measurement location, reducing manual image sorting across large numbers of similar assets.

Mobile connectivity

The free Testo Thermography App for iOS and Android provides live viewing, remote camera control and wireless image transfer. Thermal images can be reviewed, annotated and used to create concise reports while still on site.

Downloads and resources

For assistance with setup, software, registration or product operation, contact hello@coreytechnical.co.uk. Corey Technical will liaise with Testo where manufacturer input is required.

Is the Testo 883-2 right for your work?

The Testo 883-2 is best suited to building thermographers, energy consultants, HVAC engineers and facilities teams who need to capture large surfaces from limited working distances and turn their findings into clearly organised reports. Its 320 × 240 native infrared resolution, <40 mK sensitivity and manual focus are paired with a 42° × 32° wide-angle lens that captures substantially more of the scene than the Testo 883-1 from the same position.

Testo SiteRecognition makes it particularly valuable for structured building surveys and repeat inspection routes. Thermal images can be automatically assigned to the correct measurement location, reducing manual sorting when documenting multiple rooms, elevations, floors or HVAC assets.

Well suited to:

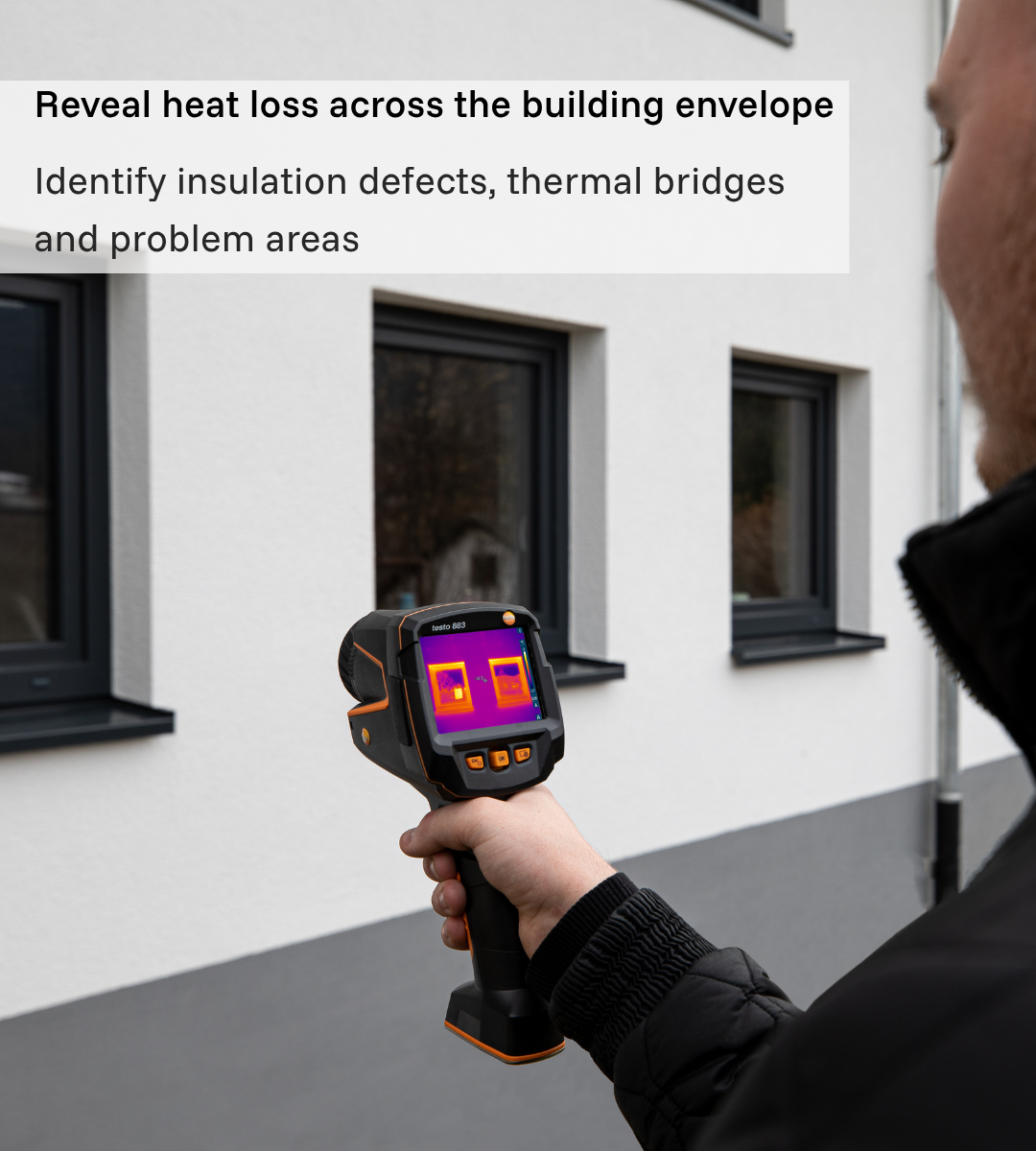

Building-envelope surveys, energy audits and heat-loss investigations
Insulation defects, thermal bridges and air-leakage patterns
Walls, ceilings, floors, windows and other large nearby surfaces
Underfloor heating, pipework and HVAC system inspections
Damp-related thermal patterns and areas at risk of mould formation
Thermographers who need traceable findings and professional client reports

Choose the standard 42° × 32° configuration if:

Most of your work involves buildings, rooms or large installations
You regularly inspect from close range or within confined spaces
Capturing more of the surface in each image is more important than maximum detail on a small component
You do not regularly inspect small, distant or inaccessible targets

Choose the dual-lens configuration if:

Your work combines wide-area building surveys with smaller or more distant targets
You inspect elevated façades, roofs, external services or equipment that cannot be approached closely
You need the 12° × 9° telephoto lens to place more detector pixels across a distant target
A spare battery and desktop charging station would support longer inspection days

Consider the Testo 883-1 if:

Electrical panels, switchgear or machinery are your principal applications
You primarily inspect individual components rather than complete surfaces
Greater component-level detail is more important than wide-angle coverage

Compare Testo 883 models

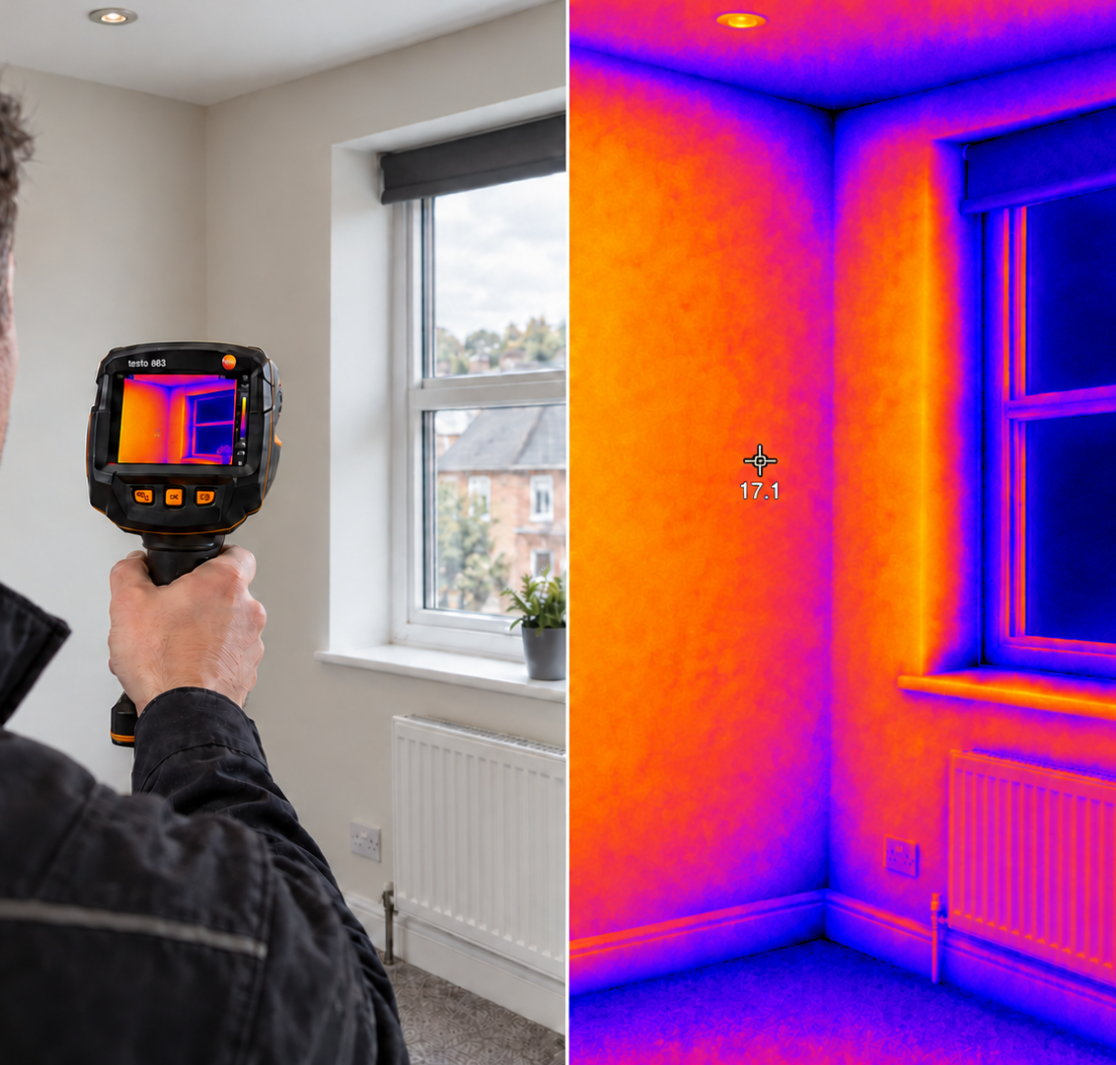

Building surveyor using a Testo 883 to inspect a wall and window, beside a wide-angle thermogram showing cooler window areas and an unheated radiator

See the Testo 883 in use

Watch official Testo demonstrations covering practical inspections, camera operation, SiteRecognition and IRSoft analysis and reporting.

Maintenance and facilities

Testo 883 for maintenance and facility management

See how the Testo 883 supports professional maintenance and facility inspection work.

Official Testo video

Building energy

Testo 883 for building energy consulting

Explore how the camera supports building surveys, energy assessments and thermal diagnostics.

Official Testo video

Inspection workflow

SiteRecognition and automatic image management

See how Testo SiteRecognition assigns thermal images to the correct measurement location for structured repeat inspections.

Official Testo video

Analysis and reporting

Analyse and document thermal images with IRSoft

Learn how to analyse thermograms and produce professional documentation using Testo IRSoft.

Official Testo video

Preventive maintenance

Preventive maintenance with the Testo 883

Follow the Testo 883 through a practical preventive-maintenance inspection workflow.

Official Testo video

Building thermography

Building thermography with the Testo 883

See the Testo 883 applied to practical building inspection and diagnostic work.

Official Testo video

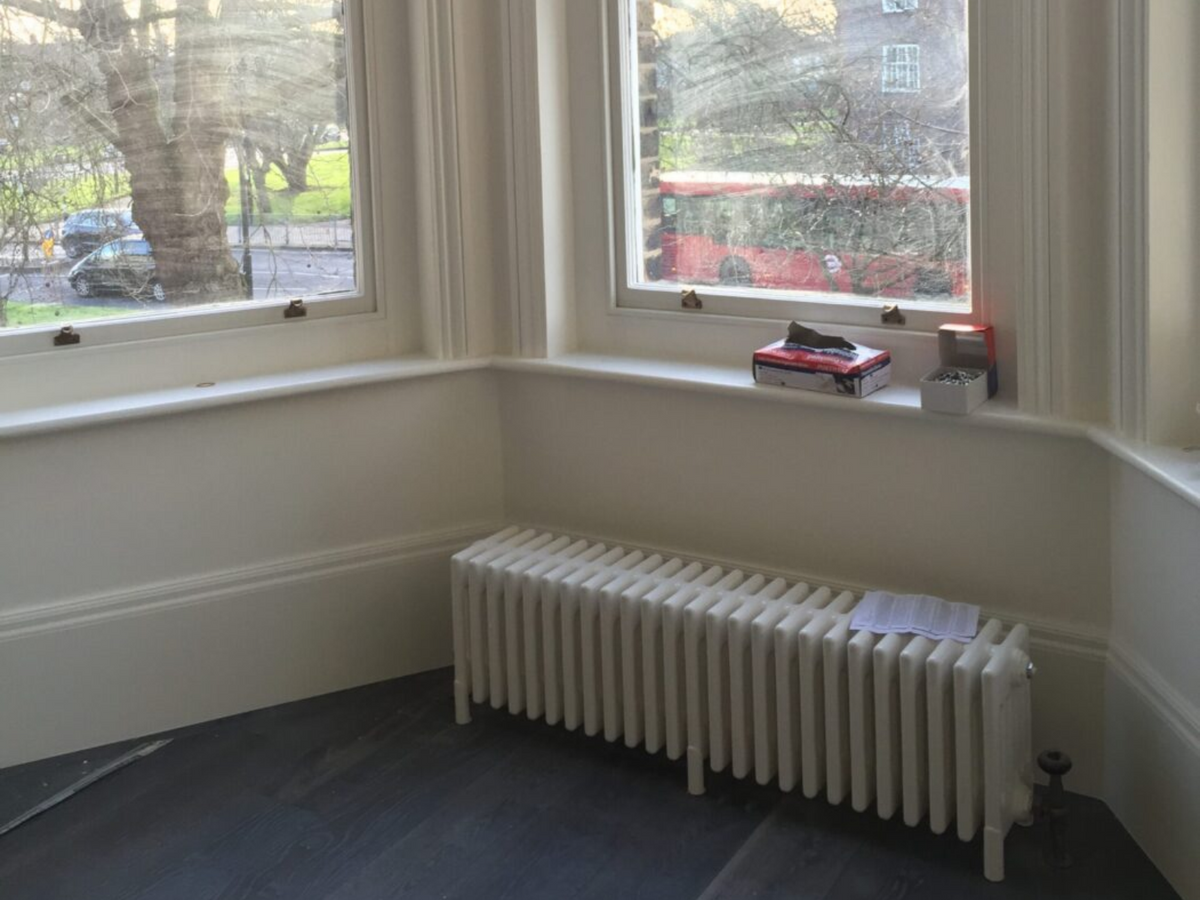

A white vintage-style radiator positioned against an inner corner wall beneath two large windows, with a dark wood floor and a street scene visible outside.

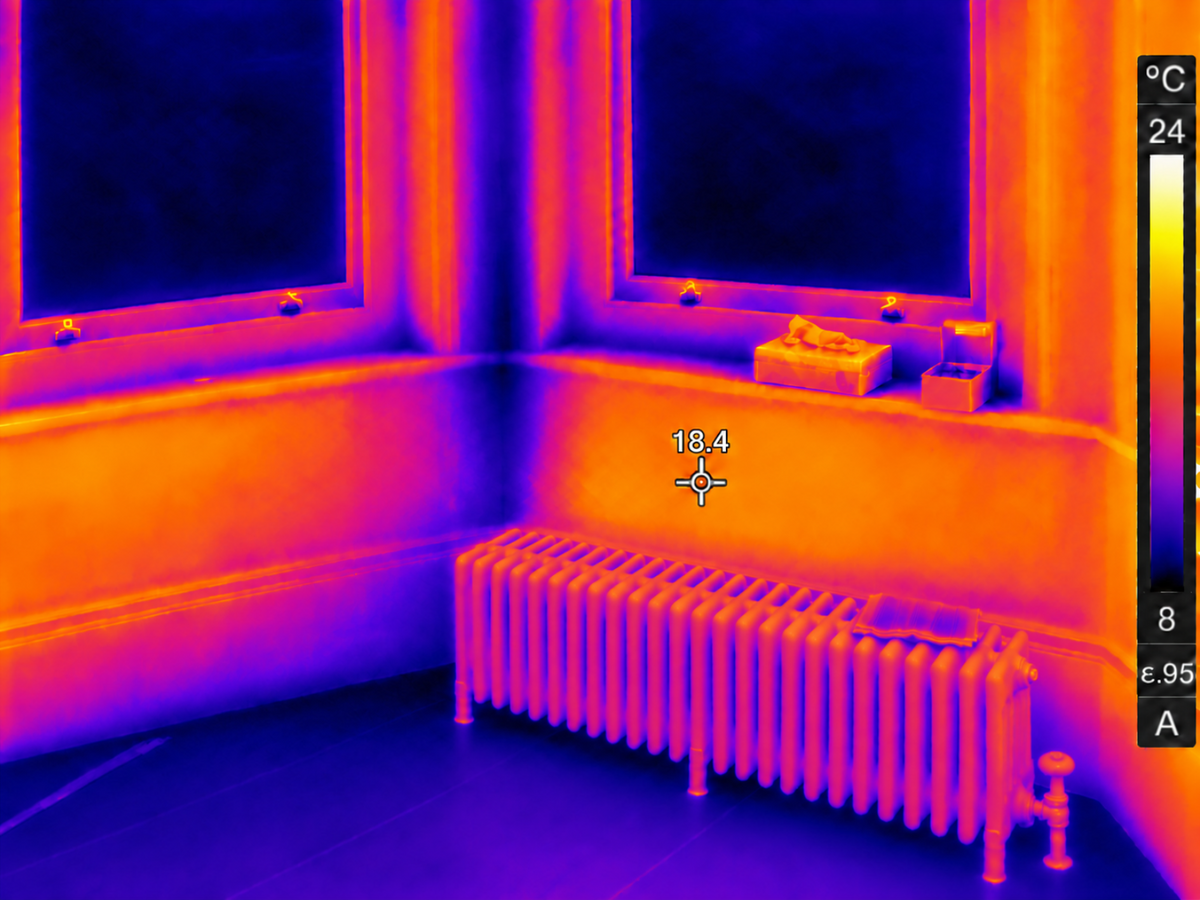

thermal image of room taken with testo 883-2 wide angle lens

Wide-angle thermal coverage for professional building surveys

The Testo 883-2 combines a 320 × 240 native infrared detector, <40 mK thermal sensitivity, manual focus and a 42° × 32° wide-angle lens to capture large surfaces and complete building elements from limited working distances.

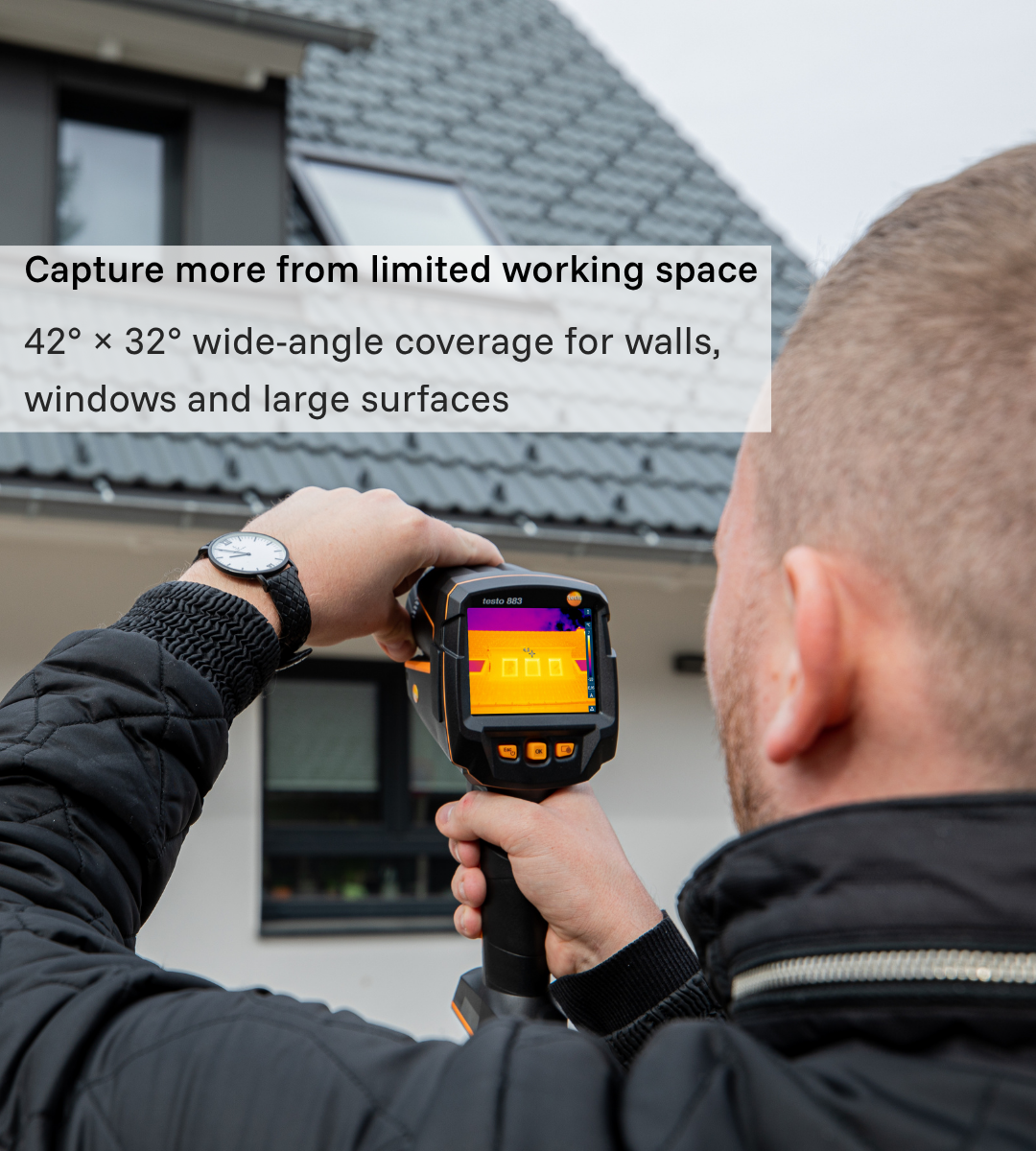

Capture more of the area from close range

The supplied wide-angle lens distributes 76,800 temperature-measurement points across a broader field of view. This allows walls, windows, ceiling junctions, floors and HVAC installations to be documented more completely when stepping farther back is not possible.

Reveal subtle building defects

<40 mK thermal sensitivity helps distinguish small temperature differences associated with insulation defects, thermal bridges, air-leakage patterns, uneven heating and areas at risk of condensation or mould. Humidity mode provides additional support when assessing surface conditions.

Create reliable, comparable thermograms

Manual focus allows each building element to be sharpened precisely, while the integrated IFOV warner indicates when a target is too small for dependable measurement. Testo ScaleAssist standardises thermal-image scaling, making images from different locations or inspection dates easier to compare.

Turn every survey into traceable evidence

A 5 MP digital camera records supporting visible images alongside radiometric thermograms. Testo SiteRecognition assigns images to the correct measurement location, while SuperResolution provides 640 × 480 thermal output for closer analysis in IRSoft and professional reporting.

Choose the lens configuration around your working distance

The supplied 42° × 32° lens is ideal for rooms, walls and large nearby installations. Choose the dual-lens kit when your work also includes elevated façades, roofs or smaller targets that cannot be approached closely. Its 12° × 9° telephoto lens places more detector pixels across distant areas, and the kit also includes a spare battery and desktop charging station.

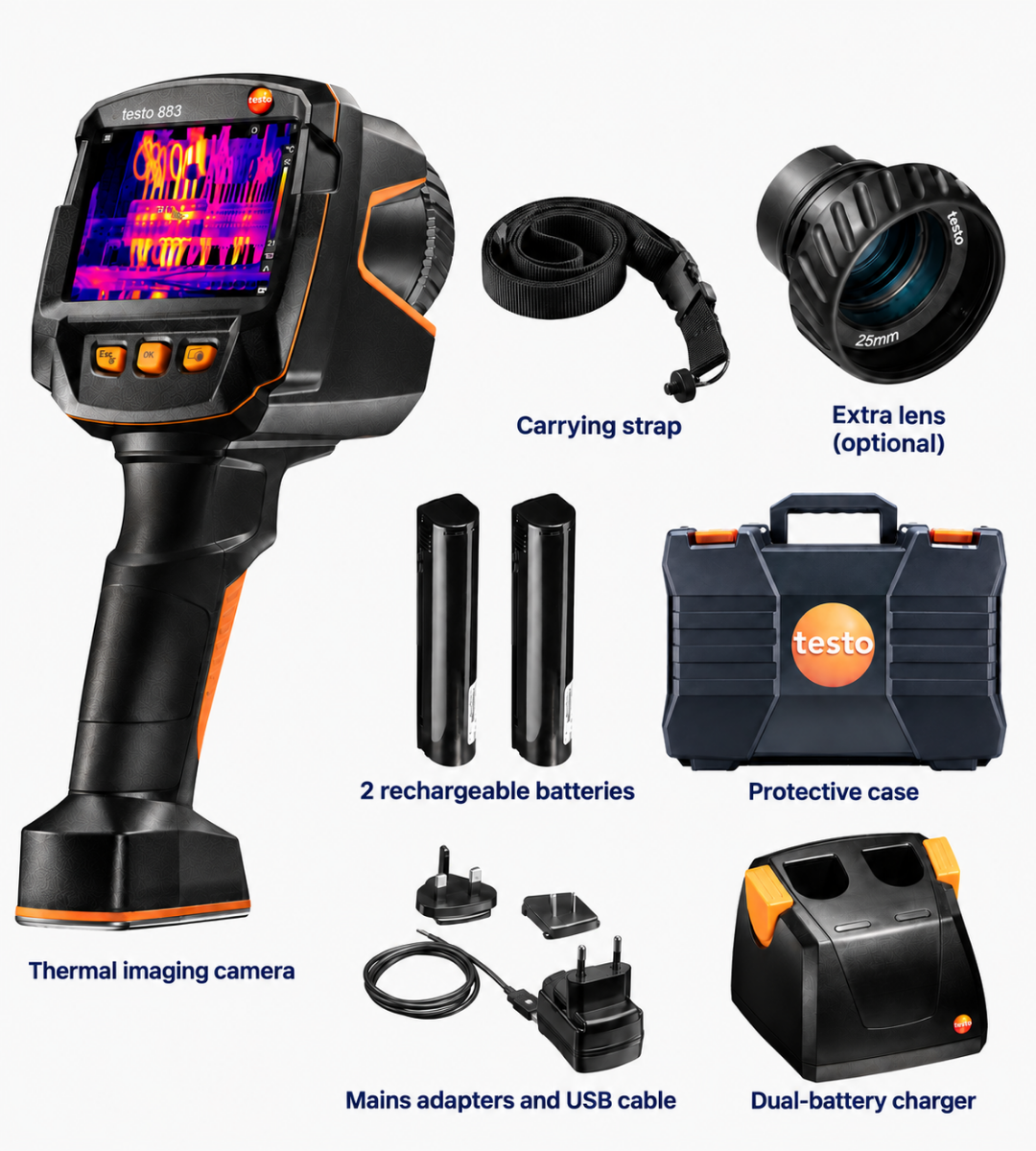

Testo 883 thermal imaging camera with optional lens, batteries, carrying strap, transport case, charging station and power adapters

Everything you need to start inspecting

The 883-2 is supplied as a complete professional kit. Ready to use the moment you receive it.

Testo 883-2 thermal imaging camera
42° × 32° standard lens
12° × 9° telephoto lens (dual-lens configuration only)
One rechargeable lithium-ion battery
Additional rechargeable battery (dual-lens configuration only)
USB-C charging cable and mains adapter
Desktop dual-battery charging station (dual-lens configuration only)
Carrying strap
Robust protective case
Quick-start instructions
Calibration protocol
Testo IRSoft professional analysis and reporting software (free download)

Standalone in the field. Powerful when connected.

Testo 883 in the field

Capture and review fully radiometric thermal images directly on the camera. Testo SiteRecognition identifies marked measurement locations and stores each thermogram with the correct asset for easier repeat inspections.

ThermoTools: ThermoTools thermal analysis software displayed on a desktop monitor

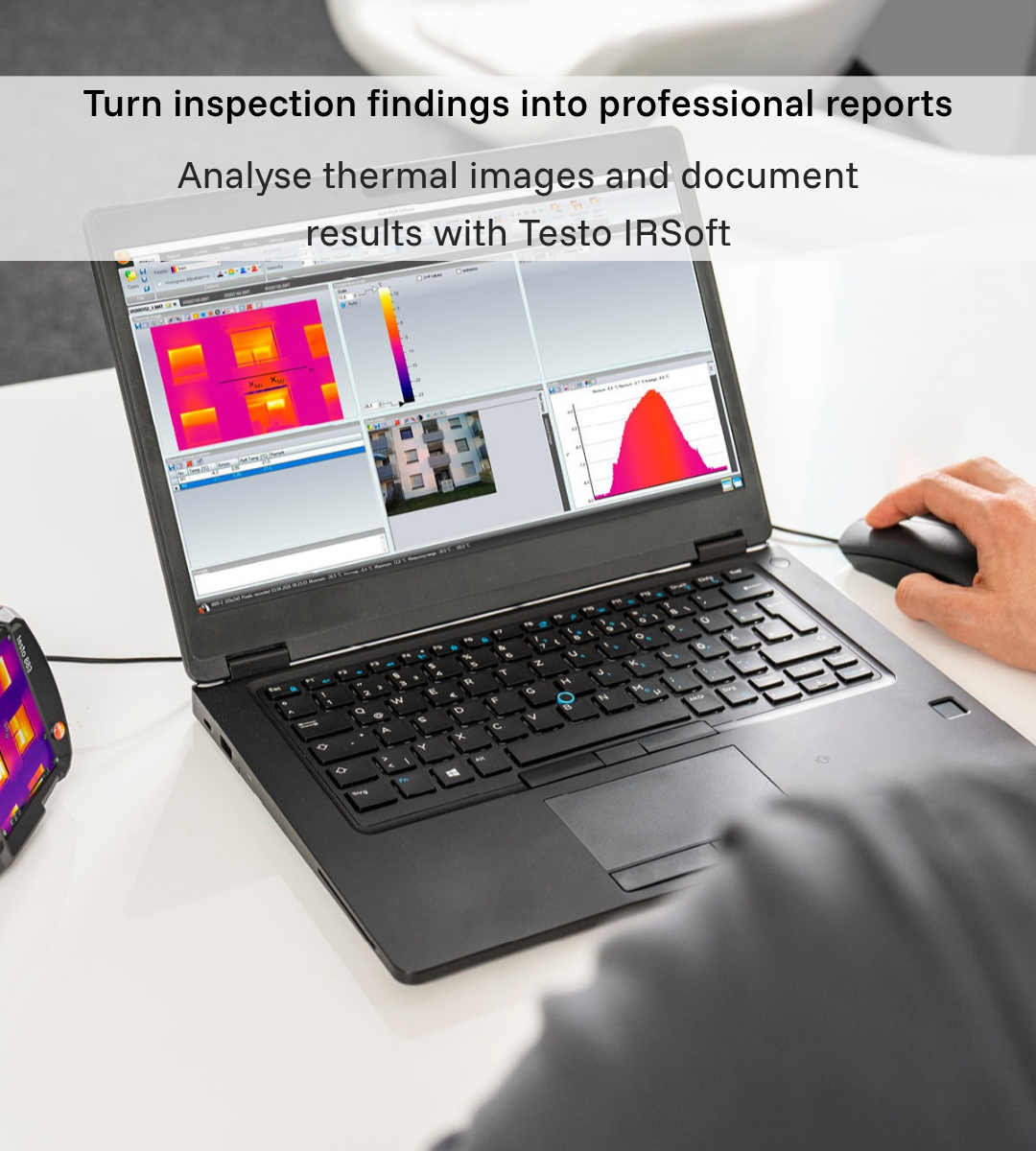

Testo IRSoft for Windows

Free professional PC software for detailed thermal-image analysis, measurement adjustment, image organisation and report creation - with no licence fee or ongoing subscription.

FocusIR: FocusIR mobile thermal imaging app displayed on a smartphone

Testo thermography app for mobile

Use an iOS or Android device as a second display or remote control, transfer and analyse saved images, and create or share reports while on site.

Downloads

Testo 883 instruction manual Testo 883 quick-start guide Testo 883 data sheet and full specifications

Testo IRSoft for Windows Testo Thermography App for iOS Testo Thermography App for Android

Tracked UK delivery

Orders are dispatched from Testo’s UK operation using a tracked courier service. Tracking details are provided once the order leaves the warehouse, and a signature may be required on delivery.

Confirmed lead times

Stocked camera and lens configurations normally arrive within 3–5 working days. Lead times can vary for less common configurations, so contact us if you need delivery by a particular date.

A minimalist black line icon of a document with a folded corner, a globe symbol, a British pound symbol crossed out with a diagonal pen, and a small box outline on a plain white background.

No unexpected charges

Your order is supplied through Testo UK. Prices are displayed clearly including and excluding VAT, with no customs duties or import charges payable when your equipment arrives.

Manufacturer-backed protection

Your Testo 883 is covered by the manufacturer’s warranty and supported by Testo UK’s service team. Register the camera within 30 days of purchase to receive a free one-year warranty extension.

Testo 883-2 FAQs

Clear answers to the most common questions about selecting, ordering and using the Testo 883-2.

The Testo 883-2 is designed primarily for building thermography, energy assessment, facilities management and HVAC inspection. Its 42° × 32° wide-angle lens captures large surfaces and complete areas from limited working distances, making it particularly effective for inspecting walls, ceilings, floors, windows, heating systems and other parts of a building envelope.

Both models provide 320 × 240 native infrared resolution, <40 mK thermal sensitivity, manual focus, SuperResolution, SiteRecognition and the same −30°C to +650°C measurement range. The principal difference is the supplied lens. The 883-2 has a 42° × 32° wide-angle lens for covering large nearby areas, while the 883-1 has a narrower 30° × 23° lens that places more detector pixels across individual electrical and mechanical components from the same position.

Choose the standard configuration if most of your work involves rooms, walls, windows, floors, heating systems and other large targets that can be inspected at close range. Choose the dual-lens kit if you also need to inspect elevated, inaccessible or more distant targets. It adds a 12° × 9° telephoto lens, spare rechargeable battery and desktop charging station.

The Testo 883 supports interchangeable lenses, but compatibility and any calibration requirements should be confirmed before purchasing a separate or replacement lens. If you expect to need the telephoto lens, selecting the factory dual-lens kit is normally the simplest option. Contact us before ordering and we will help confirm the correct configuration.

The Testo 883-2 measures temperatures from −30°C to +650°C. This comfortably covers building-envelope assessment, heating and ventilation inspection, facilities maintenance and most general industrial applications. Contact us before ordering if your work involves temperatures outside this range.

The camera records 320 × 240 native infrared images, providing 76,800 temperature-measurement points. Testo SuperResolution produces enhanced 640 × 480 thermal output, while manual focus helps create a sharp measurement image. The 42° × 32° lens prioritises wide coverage in restricted spaces; for small or distant targets, the optional telephoto lens provides greater pixel density.

The Testo 883-2 can reveal thermal patterns associated with missing or poorly installed insulation, thermal bridges, air leakage around windows and doors, uneven heating, underfloor-heating irregularities, HVAC distribution problems, concealed pipework and areas at risk of surface condensation or mould. Thermography identifies temperature patterns rather than proving their underlying cause, so findings such as moisture or air leakage should be confirmed using suitable supporting measurements and inspection methods.

Yes. The camera records fully radiometric thermograms together with supporting 5 MP visible-light images. Testo SiteRecognition helps assign images to the correct measurement location during repeat surveys, while the free IRSoft software provides detailed image analysis, adjustment, organisation and professional report creation on a Windows computer.

No. Thermal images can be captured, measured, reviewed and stored directly on the camera. Testo IRSoft is supplied as a free Windows download with no ongoing subscription. The Testo Thermography App also supports compatible iOS and Android devices for remote control, live viewing, image transfer and on-site reporting.

The Testo 883-2 arrives ready to use and includes a manufacturer test protocol. This is not the same as a formal calibration certificate. An additional calibration certificate can be added when ordering if required by your quality system, inspection procedure or client. Contact us before ordering if a particular calibration standard is needed.

Your Testo 883-2 is supplied from within the UK using a tracked courier service. Standard delivery typically takes 1–5 working days, subject to stock availability, while next-working-day delivery may be available for selected stocked configurations ordered before the applicable cut-off time. Contact us if you require the camera by a particular date. There are no customs duties or import charges to pay when it arrives.

The Testo 883-2 includes a two-year manufacturer’s warranty. Register the camera with Testo within 30 days of purchase to receive a free one-year extension, increasing the total warranty period to three years. Corey Technical remains your first point of contact if a fault develops.

Yes. Unwanted equipment can be returned within 60 days of receipt, provided it is unmarked, undamaged, in resalable condition and returned with its original packaging and all supplied accessories. Personalised calibration certificates, special-order products and modified or made-to-order equipment cannot be returned. Return shipping costs are the customer’s responsibility. Contact Corey Technical before sending anything back so we can provide the correct instructions.
