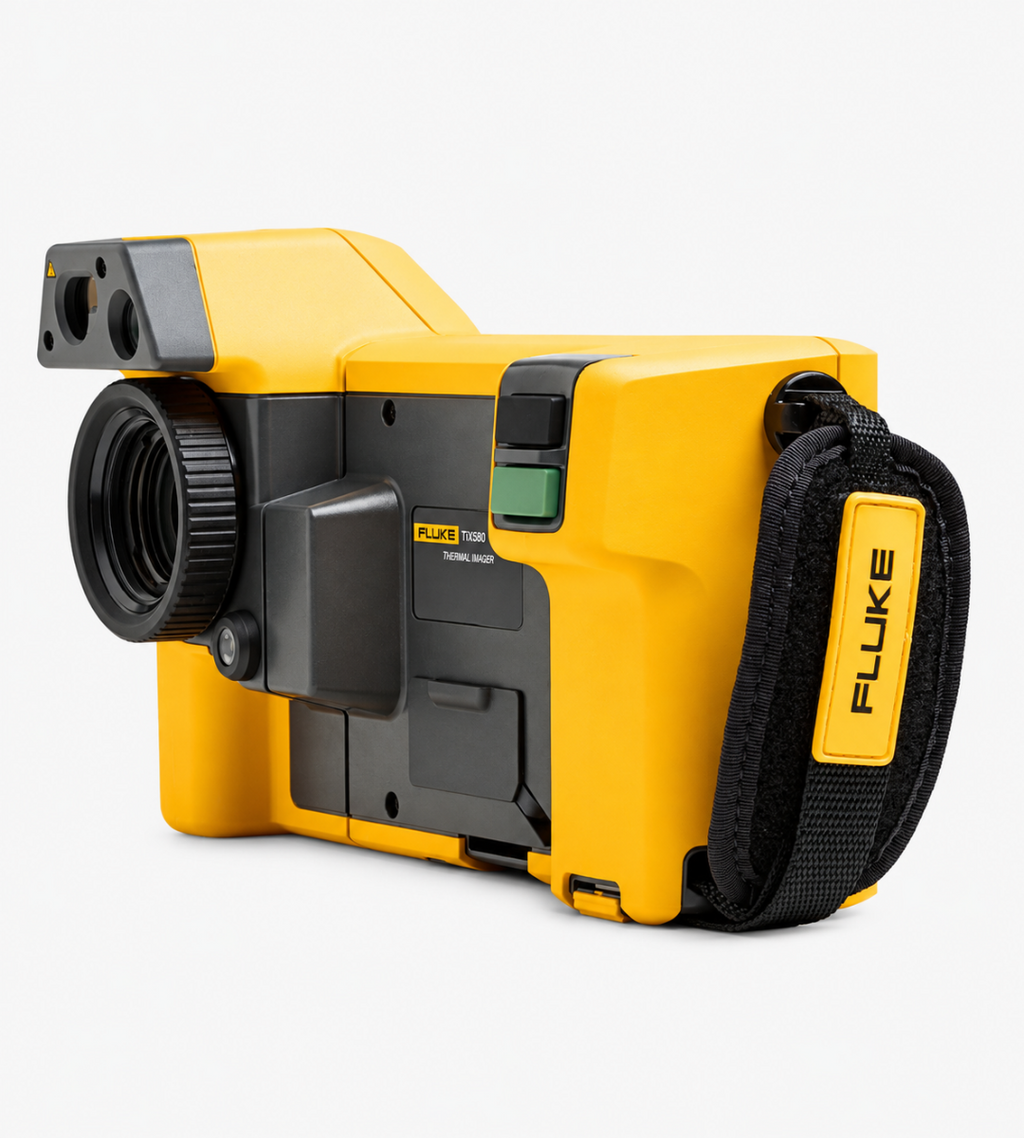

Fluke TiX580 Thermal Imaging Camera

Advanced thermal imaging for expert diagnostics, R&D, quality assurance and demanding industrial processes.

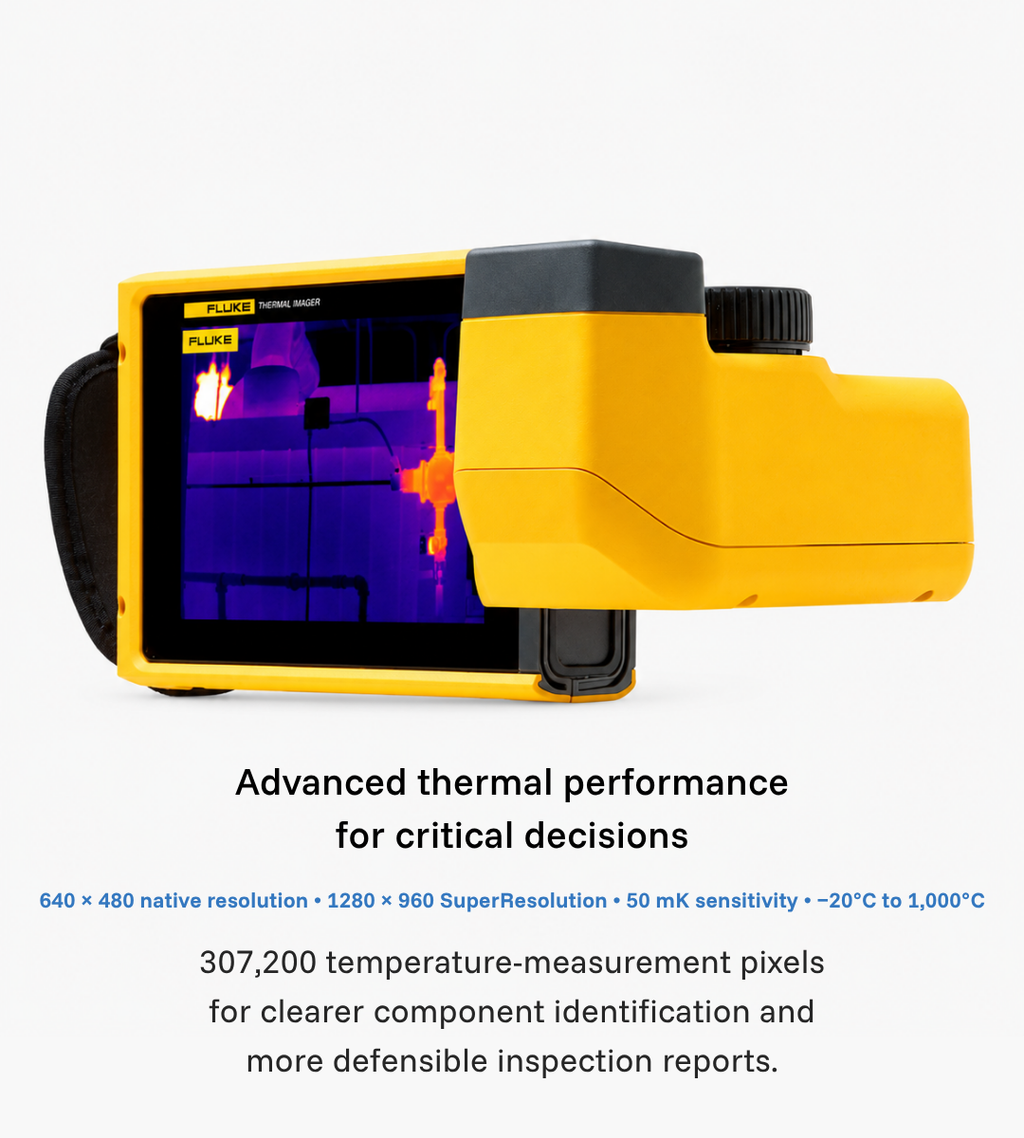

Distinguish finer temperature differences: 640 × 480 native infrared resolution and 50 mK thermal sensitivity help reveal subtle heat patterns.
Review images in exceptional detail: SuperResolution captures additional data to produce 1280 × 960 thermal images for closer analysis and reporting.

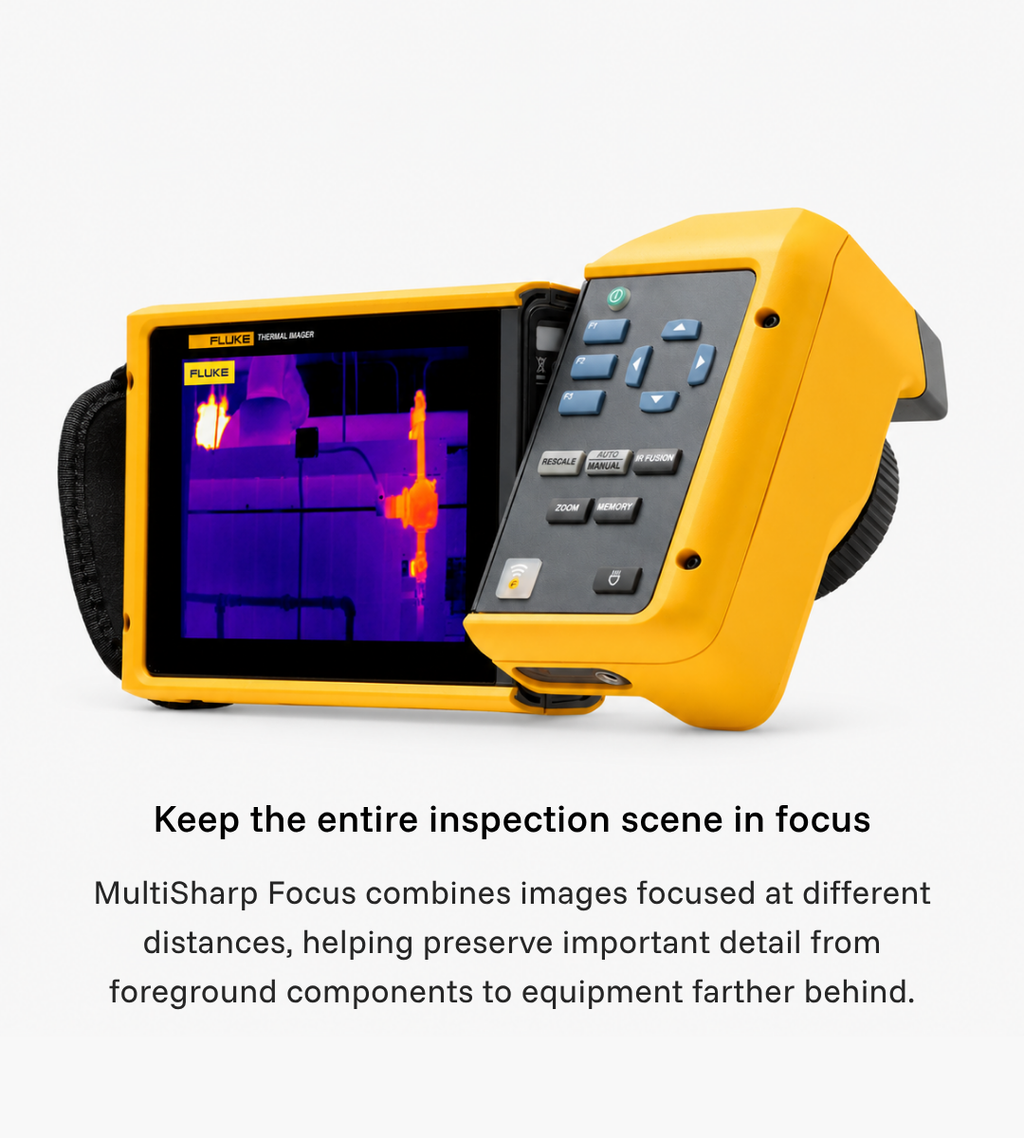

Keep complex scenes sharply focused: MultiSharp™ Focus combines images taken at different focal distances, while LaserSharp® Auto Focus provides precise single-target focusing.

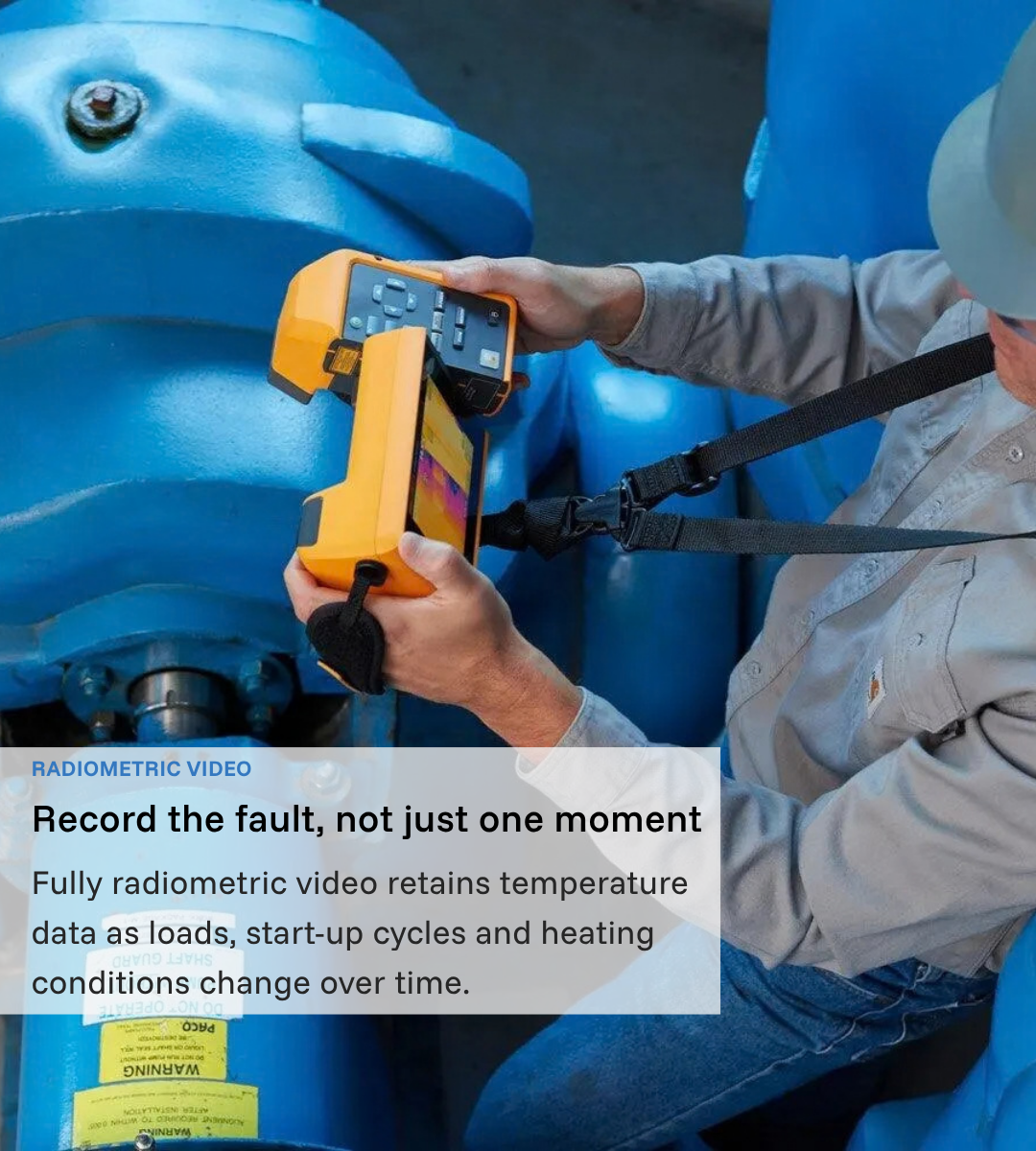

Analyse changing thermal conditions: Fully radiometric video, real-time temperature graphs and automatic image capture help investigate how equipment and processes behave over time.

Found this camera and lens configuration available for less from another authorised UK retailer? Send us the details and we will try our best to match the price - we normally can.

Free tracked and insured delivery is included with all camera orders to standard UK addresses.

Corey Technical also manages import VAT, customs clearance and duties - where applicable - so you will not receive an unexpected import bill.

Speak directly with Corey Technical for product comparisons, lens selection, quotations, order updates and after-sales support.

We aim to respond promptly and remain your point of contact throughout your purchase.

Contact Corey Technical

Model: Ti300U · Product code: FLK-TIX580-9HZ-S34

£17,285.00 incl. VAT £14,404.17 excl. VAT

Shipping calculated at checkout.

Available to order

Typical UK delivery: 1-5 working days. Longer lead times may apply to selected configurations.

Frame Rate

Lens Configuration

Price includes the Ti300U camera and selected lens configuration.

Request a formal quotation

Unsure which lens you need? Get configuration advice →

round navy blue circle with white check mark

Quotations and VAT invoices available

UK-based pre and post-sale support

Secure card and bank-transfer payment

Manufacturer-backed warranty assistance

384 × 288 native infrared resolution
75 mK thermal sensitivity (NETD at 30 °C)
9 Hz or 30 Hz infrared frame rate, depending on the supplied variant
−20 °C to 650 °C temperature measurement range
Measurement accuracy: ±2 °C or ±2%, whichever is greater, under specified conditions
Adjustable emissivity and corrections for reflected temperature, ambient temperature, humidity, distance and IR-window transmission
UltraFocus temperature-based autofocus, laser-assisted autofocus and manual focus
3.5-inch, 640 × 480 LCD display
Thermal, visible-light, picture-in-picture and IR-Fusion viewing modes
25° × 19° field of view and 1.14 mrad spatial resolution with the standard lens
Optional wide-angle, 2× and 4× telephoto lenses
Fully radiometric thermal video recording and SmartView IR analysis software
Approximately 2–3 hours of operation per replaceable battery, depending on use
IP52 protection and designed for 1 m drop resistance
Supplied 64 GB microSD card, with support for cards up to 128 GB

Field of view, spatial resolution and minimum focus distance vary with the selected lens. See the lens guide below.

Fluke Ti300U thermal imaging camera with standard lens
Two rechargeable SBP3 smart batteries
Power adapter
Two-bay battery charger
Hand strap
Carrying case
Mini HDMI cable
USB-A dual-port cable
64 GB microSD card
Quick reference guide
Safety information
Fluke detection report

Dispatch and delivery

Orders are dispatched free of charge from within the UK using a tracked courier service.

Delivery to most UK mainland addresses typically takes 1–5 working days, subject to product availability. If the Ti300U or a selected lens is not immediately available, we will confirm the expected delivery window before dispatch.

Tracking information will be provided once your order has been dispatched. If you need the camera by a particular date, please contact Corey Technical before ordering so we can provide an honest availability and delivery estimate.

As the equipment is supplied from within the UK, there are no customs charges or import bills to pay on delivery.

Returns

Contact Corey Technical before returning any product so we can authorise the return, confirm the correct address and ensure it is handled as efficiently as possible. Products must not be sent directly to Corey Technical or Fluke without written return authorisation from us.

Change-of-mind and other non-fault returns may be requested within 60 calendar days of delivery. Products must be returned complete, unmarked and undamaged, in a resalable condition and with all original packaging, accessories and documentation.

If you believe the product is faulty, damaged or incomplete, contact us as soon as possible. Corey Technical will coordinate the appropriate assessment and, where applicable, arrange a repair, replacement or refund.

Consumer cancellation rights and statutory rights relating to faulty, misdescribed or unsuitable goods remain unaffected.

We aim to make returns straightforward, with clear communication throughout to help minimise disruption and downtime.

Faults and warranty

Every Fluke Ti300U supplied by Corey Technical includes a two-year manufacturer warranty.

If a fault develops during the warranty period, contact hello@coreytechnical.co.uk with your order number, product serial number, a description of the issue and any supporting photographs or video.

Corey Technical will manage the process on your behalf, including assessment and repair or replacement where covered by the warranty. We will explain the next steps clearly and keep you updated throughout the process.

All returns, warranty assessments, repairs and replacements must be authorised in advance to ensure safe transit and the most efficient possible resolution.

Standalone operation

The Ti300U operates as a standalone thermal imaging camera. You can capture, review and store thermal images during an inspection without a computer or mobile app.

Analysis and reporting software

Fluke SmartView IR software is available for PC at no additional charge. It supports detailed thermal image analysis, radiometric video analysis and professional report creation.

Downloads

For assistance with setup, software or product operation, contact hello@coreytechnical.co.uk. Corey Technical will help with your enquiry and liaise with Fluke where manufacturer input is required.

Is the Ti300U right for your work?

The Ti300U is the 384 × 288 infrared model in Fluke’s Ultra Series. It is suited to professionals who need a dependable camera for regular electrical, mechanical, HVAC and building inspections, where the target can usually be viewed at a close to moderate working distance.

Its UltraFocus system helps bring equipment into focus quickly, while the −20 °C to 650 °C measurement range covers a broad range of maintenance tasks. You can review findings on the camera during an inspection, then use Fluke SmartView IR on a PC for further analysis and reporting. Optional wide-angle and telephoto lenses give you flexibility when the standard view does not suit the target.

Well suited to:

Electrical distribution boards, switchgear and connections
Motors, pumps, bearings and other mechanical equipment
HVAC systems, plant rooms and building services
Routine building inspections, including heat-loss investigations
Maintenance teams producing inspection records and client reports

Consider the Ti401U if:

You regularly inspect smaller components or work further from the target
You need the extra detail and cropping flexibility of a 640 × 480 native infrared detector
Higher-resolution images are a regular requirement in your reports

Consider the Ti480U if:

Detecting finer temperature differences is particularly important
You need to measure temperatures above the Ti300U’s 650 °C limit
You want 640 × 480 native resolution with a higher-resolution SuperResolution output

Compare Ultra Series models All Fluke cameras

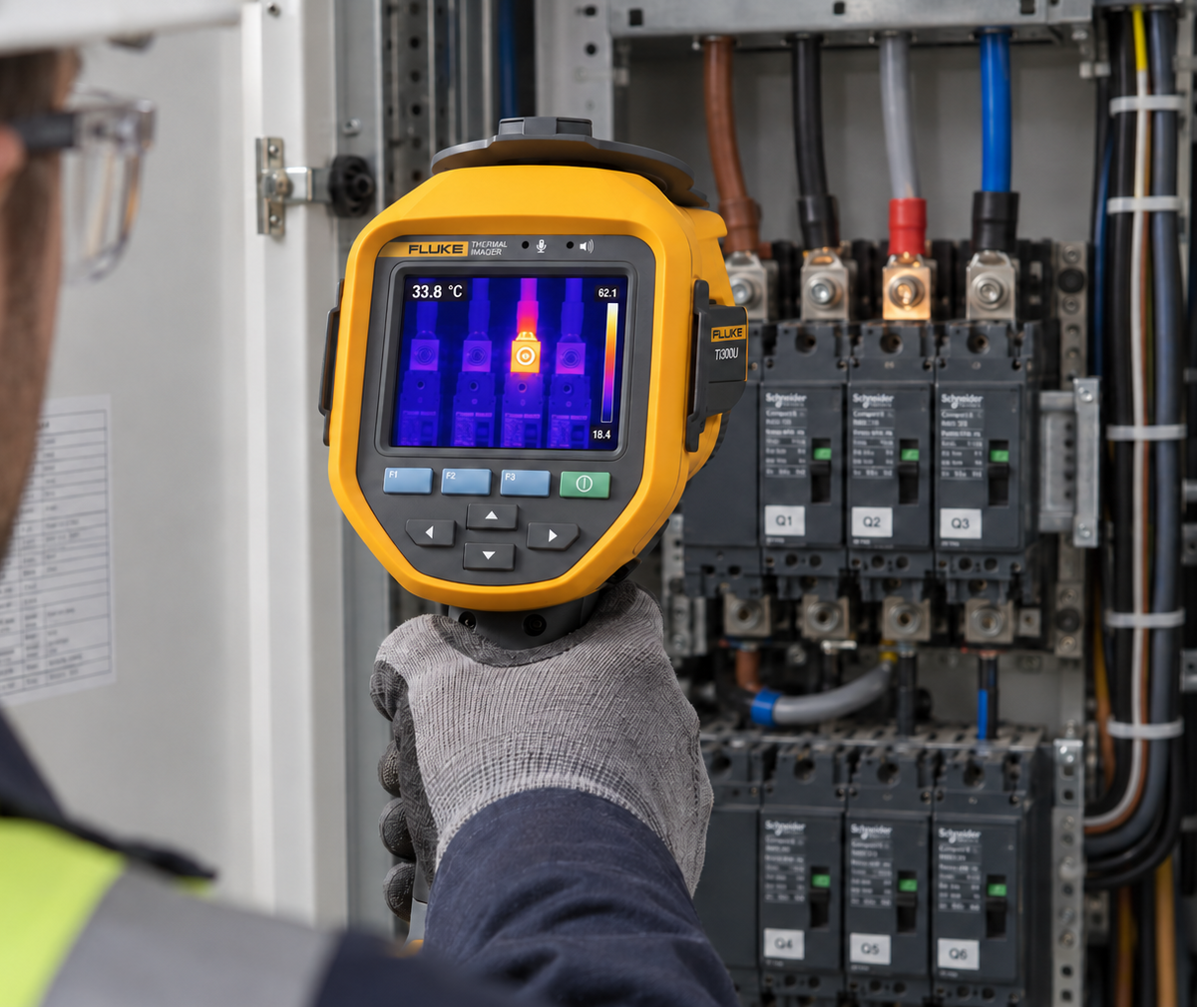

Technician using a Fluke Ti300U thermal camera to inspect an electrical distribution cabinet, with a warmer connection visible on the camera screen.

Quick lens selector

Standard lens 25°

The best all-round choice

Choose this for mixed electrical, mechanical, HVAC and building-services inspections at close to moderate distances.

Wide-angle 44°

For large targets in confined spaces

Choose this when you need to capture more of a nearby panel, room, wall or installation without stepping farther back.

2× telephoto lens 12°

For smaller or more distant components

Choose this for elevated equipment, outdoor switchgear and components that cannot be approached closely.

4× telephoto lens 7°

For specialised long-distance inspections

Choose this when a small target must be resolved from a substantial distance and maximum reach matters more than scene width.

Comparison of the four lenses available for the Fluke Ti300U thermal imaging camera
	Standard lens	Wide-angle lens	2× telephoto lens	4× telephoto lens
Availability	Included with the Ti300U	Optional	Optional	Optional
Field of view	25° × 19°	44° × 34°	12° × 9°	7° × 5°
Spatial resolution Lower is finer	1.14 mrad	2.00 mrad	0.55 mrad	0.32 mrad
Minimum focus distance	0.1 m	0.1 m	0.25 m	1 m
Focal length	15 mm	8 mm	24.8 mm	51.2 mm
Temperature range	−20°C to 650°C	−20°C to 650°C	−20°C to 650°C	−20°C to 650°C
Key benefit	Best balance of scene coverage, target detail and versatility	Captures large nearby targets where stepping farther back is difficult	Places more detector pixels across smaller or more distant components	Finest target detail at distance of the four Ti300U lenses
Main drawback	Less detail than a telephoto lens on small, distant targets	Lowest spatial detail; poorly suited to small targets at distance	Narrower view makes it less convenient for broad or close-range scenes	Very narrow view and 1 m minimum focus distance make it the least versatile
Best suited to	Mixed inspections at close to moderate working distances	Large targets and confined areas with limited working space	Routine inspections of smaller targets that cannot be approached closely	Specialist long-distance inspections of small or inaccessible targets
Typical inspection work	Electrical panels, motors, pumps, HVAC systems and general building services	Large cabinets, plant rooms, walls, ceilings and building interiors	Elevated switchgear, busbars, cable terminations and guarded machinery	Overhead connections, distant substation components and inaccessible equipment

See Fluke cameras in detail

Watch official Fluke videos covering the TiX and Ultra Series, from camera operation and measurement setup to Super Resolution use of Fluke's analysis software - SmartView IR

Fluke Ti300U, Ti401U and Ti480U Ultra Series thermal imagers video thumbnail

Ultra Series overview

Explore the Fluke Ultra Series

An introduction to the Ti300U, Ti401U and Ti480U handheld thermal imagers.

Fluke Australia video

Fluke TiX580 and Ti480 high-resolution infrared cameras video thumbnail

TiX and Ti480 overview

Fluke TiX580 and Ti480 cameras

See Fluke’s overview of the TiX580 and the earlier Ti480 infrared camera.

Fluke Corporation video

Fluke Ti480U Ultra Series thermal camera features video thumbnail

Ti480U features

A closer look at the Ti480U

Explore the Ti480U in Fluke Australia’s overview of this Ultra Series model.

Fluke Australia video

Fluke Ti480U thermal camera being used for HVACR inspections video thumbnail

Ti480U in use

Using the Ti480U on HVACR jobs

Hear an HVACR technician’s perspective on using the Ti480U in the field.

Fluke Australia video

Focusing technology

Fluke LaserSharp Auto Focus

Watch a demonstration of LaserSharp focusing on a compatible Fluke thermal camera.

TEquipment video

Fluke SmartView Research report creation and export video thumbnail

SmartView reporting

Create reports and export results

See how Fluke SmartView Research supports thermal analysis, report creation and data export.

TEquipment video

Fluke SmartView Research infrared streaming video thumbnail

SmartView streaming

Stream infrared data into SmartView

Watch how SmartView Research receives and displays live infrared camera data for analysis.

TEquipment video

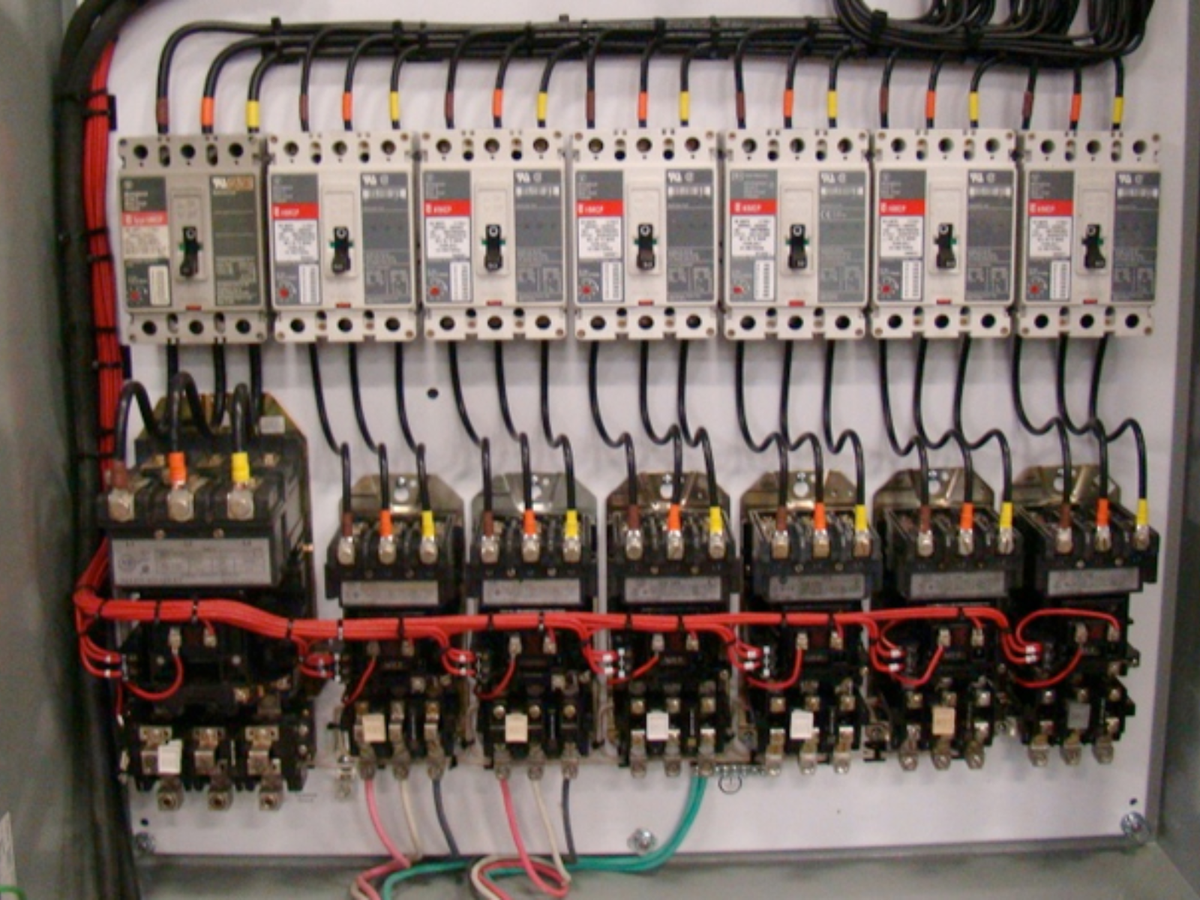

Open electrical switchboard containing circuit breakers, contactors and control wiring

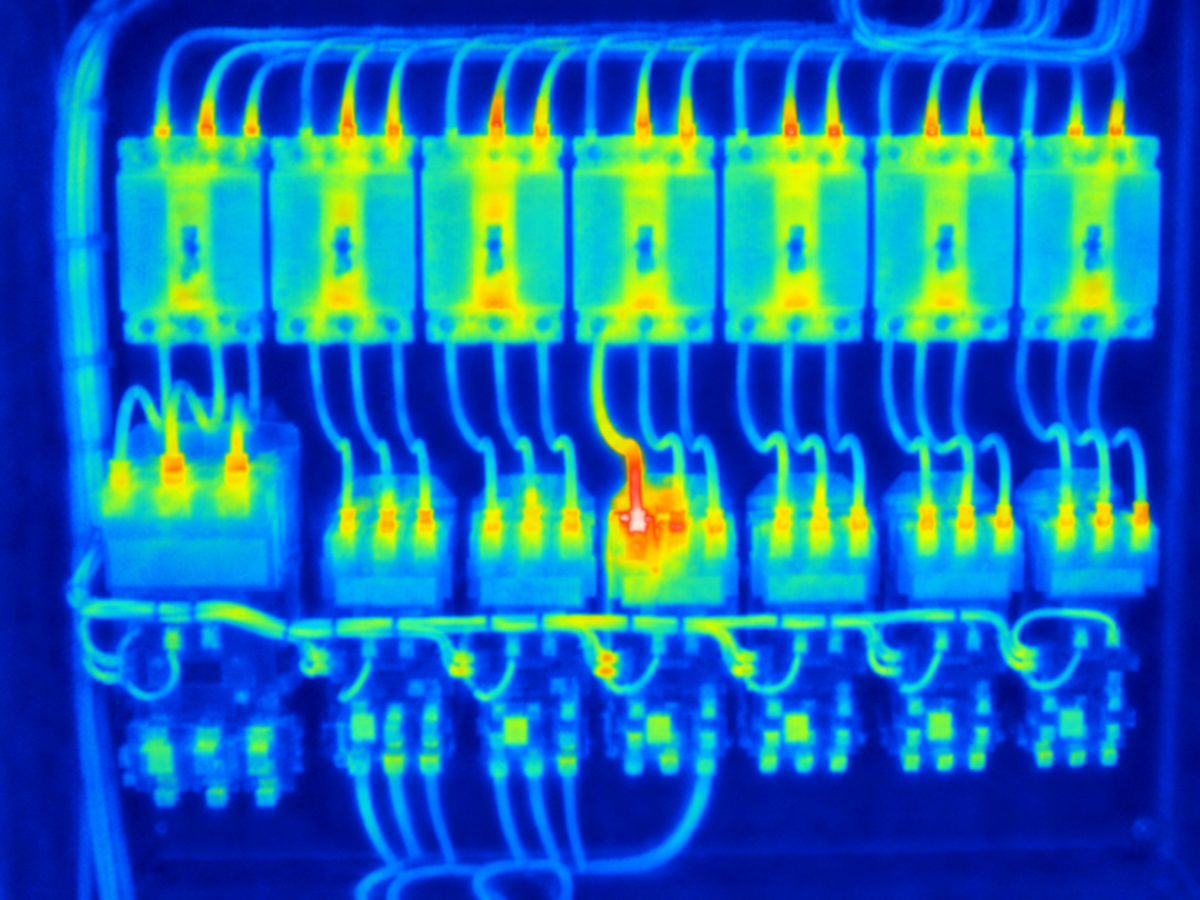

Thermal view of the electrical switchboard showing a high-temperature fault at a central contactor terminal

Clear, focused thermal evidence for professional inspections

The Ti300U combines a 384 × 288 infrared detector, UltraFocus technology, IR-Fusion imaging and fully radiometric video to help professionals identify, document and investigate faults across electrical, mechanical, HVAC and building-services equipment.

Capture dependable inspection detail

Its 110,592 measurement pixels provide sufficient detail for routine inspection of connections, breakers, motors, pumps and other equipment viewed at appropriate working distances.

Bring the target into focus quickly

UltraFocus can focus using temperature differences within the scene in as little as one second. Laser-assisted, continuous and manual focusing options provide additional control for complex equipment and changing inspection conditions.

Keep each finding connected to the asset

The 13-megapixel visible-light camera and adjustable IR-Fusion blending combine thermal information with recognisable equipment detail, making anomalies easier to locate, explain and document.

Investigate changing thermal behaviour

Fully radiometric video preserves temperature data throughout the recording, allowing intermittent heating, cooling cycles and load-related changes to be reviewed and analysed using Fluke SmartView IR.

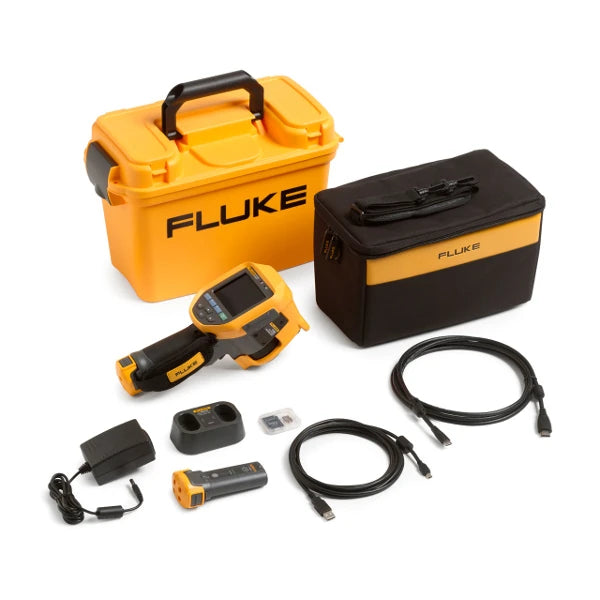

Everything you need to start inspecting

The Ti300U is supplied as a complete professional kit. Ready to use the moment you receive it.

Fluke Ti300U thermal imaging camera with standard lens
Two rechargeable SBP3 smart batteries
Power adapter
Two-bay battery charger
Hand strap
Carrying case
Mini HDMI cable
USB-A dual-port cable
64 GB microSD card
Quick reference guide
Safety information
Fluke detection report

Capture in the field. Analyse and report with SmartView.

Standalone operation

Capture, review and store thermal images and radiometric video directly on the Ti300U without requiring a computer or mobile app.

SmartView IR for desktop

Process thermal images and radiometric video, analyse measurement data and prepare professional inspection reports on a computer.

SmartView Mobile for iOS

Review, optimise and analyse compatible thermal images, add measurement markers and share inspection results from your iPhone.

Downloads

Ti300U/Ti401U/Ti480U user manual Ti300U/Ti401U/Ti480U quick start guide Ti300U/Ti401U/Ti480U technical data Ti300U/Ti401U/Ti480U safety information

Fluke SmartView IR software Fluke SmartView IR software user manual Fluke SmartView mobile IOS app

Tracked UK delivery

Orders are dispatched from Fluke’s UK operation using a tracked courier service. Tracking details are provided once the order leaves the warehouse, and a signature may be required on delivery.

Confirmed lead times

Stocked camera and lens configurations normally arrive within 1–5 working days. Lead times can vary for less common configurations, so contact us if you need delivery by a particular date.

A minimalist black line icon of a document with a folded corner, a globe symbol, a British pound symbol crossed out with a diagonal pen, and a small box outline on a plain white background.

No unexpected charges

Your order is supplied through Fluke UK. Prices are displayed clearly including and excluding VAT, with no customs duties or import charges payable when your equipment arrives.

Manufacturer-backed protection

Your Fluke Ti300U is covered by the manufacturer’s warranty and supported by Fluke UK’s service team. Cameras do not need to be registered with Fluke for the warranty to be upheld.

Fluke Ti300U FAQs

Clear answers to the most common questions about selecting, ordering and using the Fluke Ti300U.

The Ti300U is well suited to routine professional inspections of electrical panels, HVAC systems, motors, pumps and building services. Its 384 × 288 detector provides dependable detail without the additional cost of the higher-resolution Ti401U or Ti480U.

The supplied 25° × 19° standard lens is the best all-round option. Choose the wide-angle lens for large nearby targets, the 2× telephoto for smaller or more distant components, or the 4× telephoto for specialist long-distance inspections.

Yes. The Ti300U supports standard, wide-angle, 2× telephoto and 4× telephoto lenses, allowing you to add compatible lenses as your inspection requirements change.

The Ti300U measures temperatures from −20°C to 650°C. This range applies across the four compatible lens options.

The camera has a native infrared resolution of 384 × 288, providing 110,592 temperature-measurement pixels. The Ti300U does not use software-generated SuperResolution.

No. Images and radiometric video can be captured, reviewed and stored directly on the camera. SmartView IR for Windows is available for more detailed analysis and reporting, while SmartView Mobile for iOS supports compatible mobile workflows.

The camera is supplied ready to use. A traceable calibration certificate should not be assumed unless specifically listed, so please contact us before ordering if your quality system requires documented calibration.

In-stock camera and lens configurations are normally delivered within 1–5 working days. Configurations that are not currently in stock can take up to six weeks. UK customers will not receive a separate import or customs bill.

The Fluke Ti300U is covered by a two-year manufacturer’s warranty. Corey Technical remains your point of contact and can assist with technical support, warranty assessment and repair arrangements.

Yes. The Ti300U can be returned within 60 days, subject to our Returns & Refunds Policy and the product being returned in re-saleable condition. Please contact Corey Technical before returning the camera or any accessories so that we can arrange the next steps.

Need help before ordering?

Tell us your application, target size and working distance. We’ll help confirm the most suitable camera and lens configuration.

Ask for product advice Request a quote
