Guide PT II professional thermal camera with standard infrared lens, front three-quarter view.

Guide Sensmart PT450S PT II Thermal Imaging Camera with ApexVision

Professional thermal imaging system for demanding electrical, mechanical and industrial inspections.

Capture dependable thermal detail: 480 × 360 native infrared resolution with ApexVision S1 super-resolution output up to 960 × 720 supports detailed inspection and reporting
Reveal developing thermal problems: ≤15mK thermal sensitivity helps distinguish small temperature differences and subtle fault patterns
Scan smoothly in real time: 50Hz imaging provides a fluid live view while inspecting electrical installations, machinery and moving equipment
Configure it for each application: interchangeable standard, wide-angle, telephoto, macro, DFOV and high-temperature lens options cover targets at different sizes, distances and temperatures

Found this camera and lens configuration available for less from another authorised UK retailer? Send us the details and we will try our best to match the price - we normally can.

Free tracked and insured delivery is included with all camera orders to standard UK addresses.

Corey Technical also manages import VAT, customs clearance and duties - where applicable - so you will not receive an unexpected import bill.

Speak directly with Corey Technical for product comparisons, lens selection, quotations, order updates and after-sales support.

We aim to respond promptly and remain your point of contact throughout your purchase.

Contact Corey Technical

Model: PT450S · Product code: GS-PT450S-25

£10,785.00 incl. VAT £8,987.50 excl. VAT

Shipping calculated at checkout.

Available to order

Typical UK delivery: 7–10 working days. Longer lead times may apply to selected configurations.

Lens Configuration

Price includes the PT450S camera and selected lens configuration.

Request a formal quotation

Unsure which lens you need? Get configuration advice →

round navy blue circle with white check mark

Quotations and VAT invoices available

UK-based pre and post-sale support

Secure card and bank-transfer payment

Manufacturer-backed warranty assistance

480 × 360 native infrared resolution
ApexVision S1 super-resolution output up to 960 × 720
Adjustable emissivity with preset and custom values
Measurement corrections: Reflected temperature, atmospheric temperature and transmission, humidity, target distance and external optics
≤ 15 mK thermal sensitivity
50Hz infrared frame rate
Temperature measurement range: −40°C to 650°C (400°C to 2,500°C with the optional high-temperature lens)
Measurement accuracy: ±2°C or ±2%, whichever is greater (up to ±1°C or ±1% under specified conditions)
Manual, automatic, continuous, laser-assisted and touch-to-focus modes
5.5-inch, 1920 × 1080 touchscreen display with Full HD OLED viewfinder
Dual visible-light cameras up to 13MP
Laser ranging from 0.1m to 35m
Up to 4.5 hours’ operation per battery
Charges to 90% in approximately one hour
IP54-rated protection
64 GB internal storage with 128 GB SD card supplied and support up to 256 GB
Wi-Fi, Bluetooth 5.0, GPS, electronic compass, USB-C and Micro HDMI
1.73 kg with standard lens and battery

Field of view, focal length, spatial resolution, minimum object distance and distance-to-spot ratio depend on the selected lens. See the lens guide below.

Guide PT450S PT II thermal camera
Selected lens configuration
Front lens cap and rear lens cover
Two rechargeable lithium-ion batteries
Desktop cradle charger
Power adapter and adapter-plug set
USB-A to USB-C cable
USB-C to USB-C cable
Micro HDMI-to-HDMI cable
USB-C to Ethernet adapter and Ethernet cable
128 GB SD card
Wrist strap and shoulder strap
Protective carrying bag
Hard protective safety case
Quick-start guide
Warranty card
Delivery inspection report
Manufacturer calibration certificate

Dispatch and delivery

Orders are dispatched, for free, directly from Guide Sensmart in China using DHL or UPS. Tracking is provided and a signature is required on delivery.

Where the camera is already available with the selected lens configuration fitted and calibrated, Guide will dispatch it within three working days of payment. Shipping from China to the UK then takes approximately 5 days.

Where the camera and lens are available separately but require configuration and calibration, the preparation lead time is approximately 30 days before shipment. If the required lens is not in stock, the combined production and calibration lead time may be up to 60 days.

The expected delivery window will be confirmed for your selected configuration.

Import charges

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

Returns

Contact Corey Technical before returning any product so we can ensure the correct process is followed and your return is handled as quickly as possible. Products must not be sent directly to Guide Sensmart without written return authorisation from us.

Change-of-mind and other non-fault returns may be requested within 14 calendar days of delivery. Products must be returned complete with all supplied packaging, accessories and documentation, and must not have been handled beyond what is reasonably necessary to inspect them.

If you believe the product has a manufacturing fault, contact us within 14 calendar days of delivery. Where a manufacturing defect is confirmed, Corey Technical will arrange the appropriate return, refund or replacement.

After this 14-day return period, faults affecting business purchases will be handled under the applicable manufacturer-backed warranty. Consumer cancellation rights and statutory rights relating to faulty, misdescribed or unsuitable goods remain unaffected.

We aim to make returns as straightforward and low-friction as possible, and our team will guide you through each step to minimise downtime.

Faults and warranty

Every PT450S supplied by Corey Technical includes the following manufacturer-backed warranty cover:

Camera: 3 years
Infrared detector: 10 years
Supplied accessories, including the lens: 2 years

If a fault develops during the applicable warranty period, please contact hello@coreytechnical.co.uk with your order number, product serial number, a description of the issue and any supporting photographs or video. We will respond promptly and coordinate the next steps on your behalf.

Corey Technical manages the warranty process directly with Guide Sensmart, including assessment, repair or replacement where applicable. Once an authorised unit is received by Guide, eligible repairs or replacements are normally returned within seven working days. If a repair is expected to take longer, an estimated timescale will be provided within three working days.

All returns, repairs and replacements must be authorised in advance so we can ensure safe transit and the most efficient possible resolution.

Standalone operation

The PT450S operates as a standalone thermal imaging camera. A computer or mobile app is not required to capture, review, analyse or store thermal images and radiometric video during an inspection.

Analysis and reporting software

Guide ThermoTools for Windows and the FocusIR app for iOS and Android are available at no additional charge, with no ongoing subscription.

ThermoTools supports detailed thermal-image analysis and report preparation. FocusIR supports compatible mobile viewing, image transfer and analysis workflows.

Downloads

For assistance with setup, software or product operation, contact hello@coreytechnical.co.uk. Corey Technical will liaise with Guide Sensmart where manufacturer input is required.

Is the PT450S right for your work?

The PT450S combines 480 × 360 native infrared resolution, ≤15mK thermal sensitivity and 50Hz imaging with the advanced controls and inspection workflow of Guide’s PT II platform. It is best suited to professional teams inspecting accessible electrical, mechanical, HVAC and building assets at close-to-moderate working distances.

Its interchangeable lens system allows the same camera body to be configured for large nearby areas, smaller or more distant targets, close-up components and high-temperature equipment. TwinView configurations can also provide two selectable fields of view without changing lenses during the inspection.

Well suited to:

Electrical panels, switchgear and distribution equipment
Motors, bearings, pumps and production machinery
HVAC systems, plant rooms and building diagnostics
Preventive-maintenance and condition-monitoring surveys
Professional thermographers working across varied applications
Teams that need wide-angle, telephoto, macro or high-temperature capability from one camera platform

Consider the PT650S if:

Small or distant targets form a regular part of your work
Inspection images frequently require substantial cropping or enlargement
You want approximately 90% more native detector pixels while retaining the same PT II workflow and lens flexibility

Consider the PT870S if:

Native megapixel thermal resolution is required
Your work involves critical, long-distance, utility or scientific inspections
Maximum image detail and cropping flexibility justify the additional investment

Compare PT II models All Guide cameras

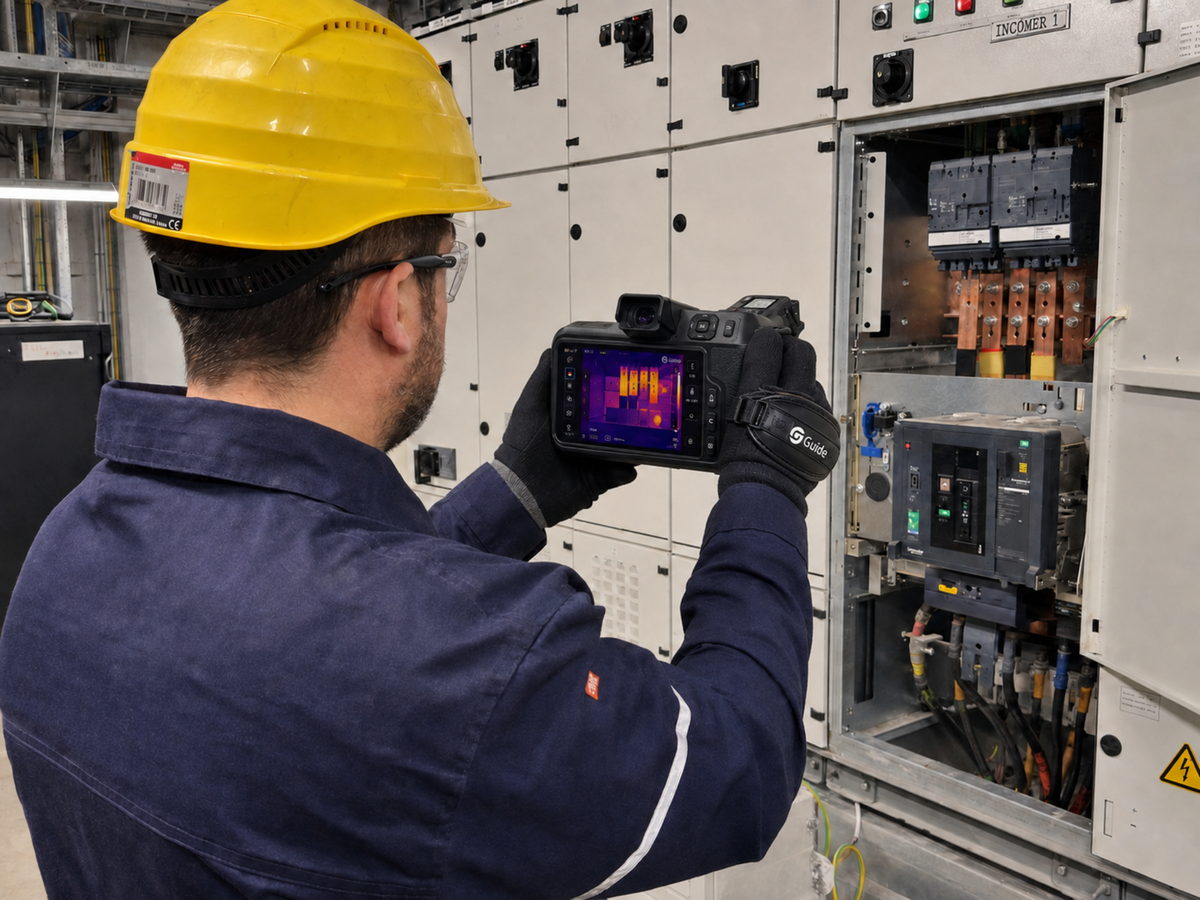

Electrical maintenance engineer using a Guide PT450S thermal camera to inspect an open switchgear cabinet in an industrial plant room.

Choose the right lens configuration

Lens choice determines how much of the scene is visible and how many detector pixels are placed on the target at a given distance. Wider lenses show more of nearby scenes, while narrower lenses provide more spatial detail on smaller or more distant targets. No single configuration is best for every application.

Need multiple lenses or a replacement accessory? Contact us before ordering so compatibility and any calibration requirements can be confirmed.

Fixed field-of-view lenses

Choose between wider scene coverage and greater spatial detail on smaller or more distant targets. The figures below are specific to the PT450S.

Wide-angle 45°

Best for: Building surveyors, HVAC engineers and industrial or electrical inspectors covering large nearby targets, plant rooms, switchboards and confined spaces.

Benefit: Provides the widest PT450S view and shortest working distance, allowing more of a nearby scene to be captured in each image.

Consideration: It places fewer detector pixels on small or distant targets than the 25°, 15° or 7° options.

Field of view: 45° × 36°

Minimum focus: 0.15m

D:S ratio: 610:1

Temperature range: −40°C to 650°C

Standard 25°

Best for: Professional thermographers, electrical contractors and industrial maintenance teams carrying out varied inspections at close to moderate distances.

Benefit: The most balanced one-lens PT450S configuration for scene coverage, working distance and target detail.

Consideration: Choose a specialist lens if most work involves confined spaces, very small targets, long distances or temperatures above 650°C.

Field of view: 25° × 20°

Minimum focus: 0.3m

D:S ratio: 1099:1

Temperature range: −40°C to 650°C

Medium telephoto 15°

Best for: Utility, substation, solar and industrial inspectors assessing smaller connections, components or mechanical assets from a moderate stand-off distance.

Benefit: Places more of the PT450S detector on the target than the 25° or 45° options without the very narrow framing of the 7° lens.

Consideration: The narrower view is less efficient for broad surveys and requires at least 0.5m focusing distance.

Field of view: 15° × 12°

Minimum focus: 0.5m

D:S ratio: 1818:1

Temperature range: −40°C to 650°C

Telephoto 7°

Best for: Utility, power-network, solar and industrial specialists inspecting overhead lines, substation components or other small and inaccessible targets from longer distances.

Benefit: Delivers the greatest spatial detail and distance-to-spot ratio available on the PT450S for demanding long-distance inspections.

Consideration: The very narrow view and 5m minimum focusing distance make it unsuitable for overview or nearby inspection work.

Field of view: 7° × 5°

Minimum focus: 5m

D:S ratio: 4000:1

Temperature range: −40°C to 650°C

Macro configuration

Designed specifically for very small components at a controlled close working distance.

High-temperature configuration

A dedicated 25° lens extends the PT450S into a 400°C to 2,500°C specialist range and is only necessary when targets may exceed 650°C.

Macro

Best for: Electronics engineers, R&D teams and quality-control specialists inspecting circuit boards, assemblies and other very small components.

Benefit: Provides 3× magnification and 48.1µm spatial resolution across a 23.1 × 18.5mm viewed area.

Consideration: It requires a fixed 100mm working distance and is intended for controlled close-up work rather than general handheld inspections.

Viewed area: 23.1 × 18.5mm

Working distance: 100mm

Spatial resolution: 48.1µm

Magnification: 3×

Up to 2,500°C

High-temperature 25°

Best for: Process, metallurgy and maintenance engineers inspecting furnaces, kilns, foundries, refractory linings and other extreme-temperature assets.

Benefit: Combines the balanced 25° view with a dedicated 400°C to 2,500°C measurement range.

Consideration: It is a specialist configuration and is only necessary when targets may exceed the standard configurations' 650°C limit.

Field of view: 25° × 20°

High-temperature range: 400°C to 2,500°C

TwinView dual field-of-view configurations

TwinView DFOV configurations provide two selectable optical fields of view in one lens, allowing the view to change without removing the lens. They do not provide continuous optical zoom.

Guide PT450S standard and wide-angle TwinView dual field-of-view lens

DFOV standard 25° + wide-angle 45°

Best for: Professional thermographers, building surveyors, HVAC engineers and industrial or electrical teams moving between general inspections, confined spaces and large nearby assets.

Benefit: Switches between the balanced 25° view and wide 45° view without changing lenses.

Consideration: Neither view increases detail on distant targets; choose the 15° DFOV or dedicated 7° lens when reach is more important.

Fields of view: 25° × 20° / 45° × 36°

Minimum focus: 0.3m / 0.15m

D:S ratio: 1099:1 / 610:1

Temperature range: −40°C to 650°C

Guide PT450S standard and medium telephoto TwinView dual field-of-view lens

DFOV standard 25° + medium telephoto 15°

Best for: Utility, substation, electrical and industrial maintenance professionals who need both an overview and more detail on smaller or moderately distant targets.

Benefit: Switches between an all-purpose 25° view and a more detailed 15° view without changing lenses, making it the most versatile PT450S configuration for mixed-distance inspections.

Consideration: It does not provide the wider coverage of the 45° lens or the long-distance reach of the dedicated 7° configuration.

Fields of view: 25° × 20° / 15° × 12°

Minimum focus: 0.3m / 0.5m

D:S ratio: 1099:1 / 1818:1

Temperature range: −40°C to 650°C

Unsure which lens is appropriate? Tell us the approximate target size, working distance and expected temperature range, and we’ll help identify the most suitable configuration before ordering.

Ask for lens advice

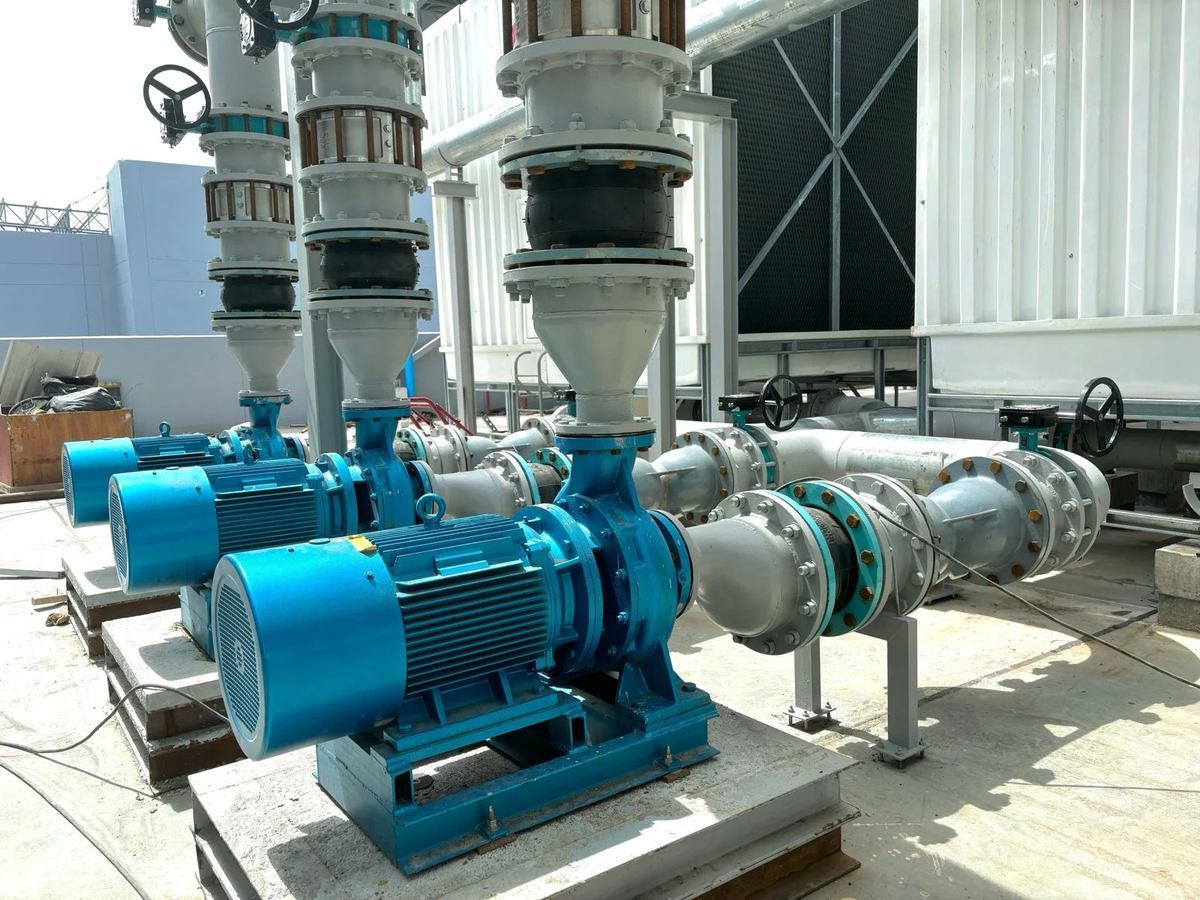

Industrial motor-driven centrifugal pumps and connected pipework in an outdoor industrial facility

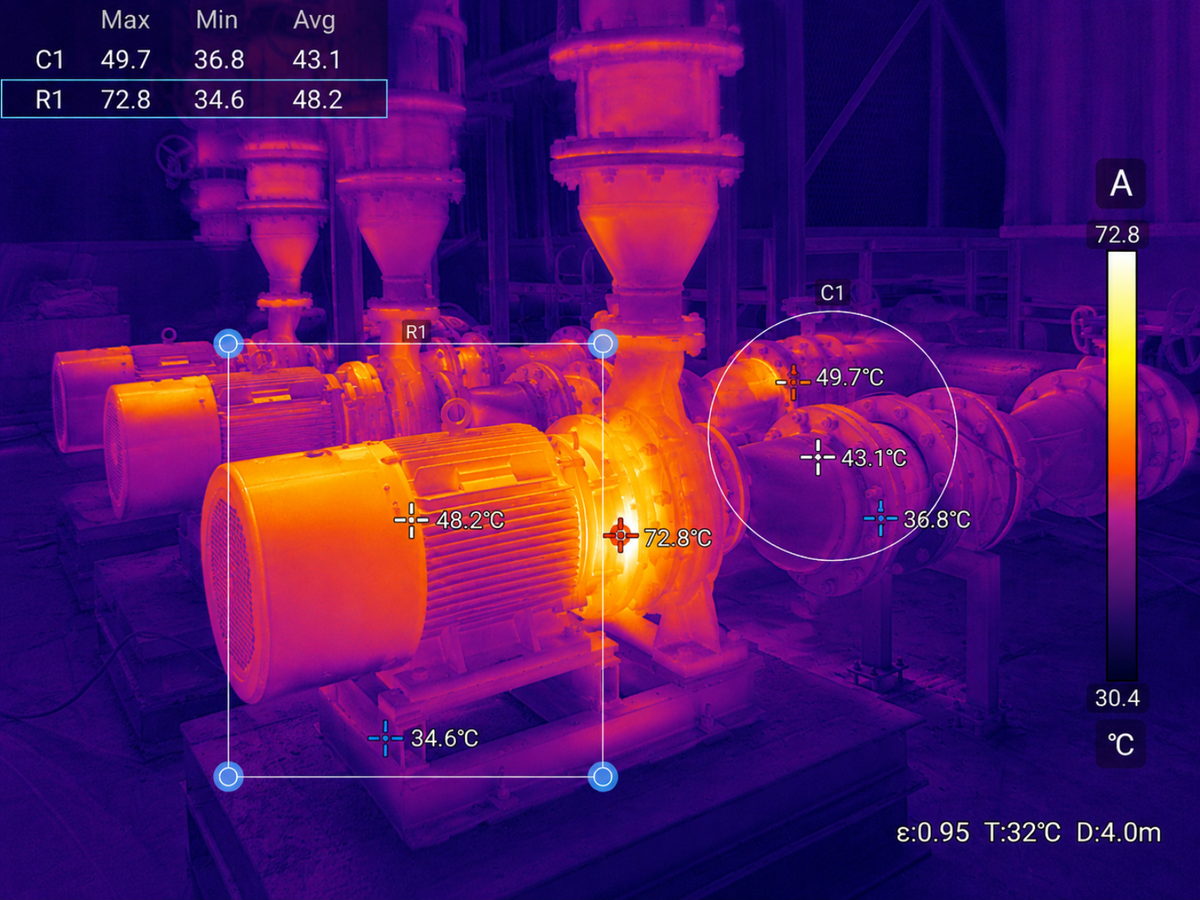

Thermal image of industrial motor-driven centrifugal pumps showing temperature differences and a localised overheating fault around the pump coupling

Clear, responsive imaging for professional fault-finding

The PT450S combines a 480 × 360 native infrared detector, ≤15mK thermal sensitivity and a 50Hz frame rate to provide dependable detail across electrical, mechanical and building inspections.

Identify developing faults clearly

Its 172,800 native temperature-measurement points help distinguish individual terminals, breakers, contactors, bearings and pipework at practical working distances. ≤15mK sensitivity reveals subtle differences between comparable components and developing thermal patterns.

Keep inspections moving

The 50Hz frame rate provides a fluid live image while scanning switchboards, machinery and building systems. Five focus modes help establish a clear measurement image across different targets and working conditions.

Capture evidence that is easy to understand

Dual visible-light cameras record supporting visual context alongside fully radiometric thermal images. ApexVision S1 super-resolution produces enhanced thermal output up to 960 × 720 for closer review and professional reporting.

Adapt one system to varied inspection work

Interchangeable wide-angle, standard, telephoto, macro, TwinView DFOV and high-temperature configurations let the PT450S cover different target sizes, distances and temperature ranges without replacing the camera body.

Guide PT II "what's included" image showing charging cables, lens caps, wrist and shoulder straps, extra batteries, battery charging cradle, SD card, mains plug adapters.

Everything you need to start inspecting

The PT450S is supplied as a complete professional kit, with your selected lens configuration calibrated before dispatch.

Guide PT450S PT II thermal camera
Selected lens configuration
Front lens cap and rear lens cover
Two rechargeable lithium-ion batteries
Desktop cradle charger
Power adapter and adapter-plug set
USB-A to USB-C cable
USB-C to USB-C cable
Micro HDMI to HDMI cable
USB-C to Ethernet adapter and Ethernet cable
128 GB SD card
Wrist strap and shoulder strap
Protective carrying bag
Hard protective safety case
Quick-start guide
Warranty card
Delivery inspection report
Manufacturer calibration certificate

Standalone in the field. Powerful when connected.

Standalone operation

Capture, review and store thermal images and video directly on the camera without requiring a computer or mobile app.

ThermoTools: ThermoTools thermal analysis software displayed on a desktop monitor

ThermoTools for Windows

Free desktop software for detailed thermal-image analysis and professional report preparation, with no ongoing subscription.

FocusIR: FocusIR mobile thermal imaging app displayed on a smartphone

FocusIR for mobile

Free iOS and Android app supporting mobile viewing, image transfer and compatible analysis workflows.

Downloads

PT II user manual PT II quick-start guide PT450S product leaflet and specifications PT II lens selection chart

ThermoTools for Windows FocusIR for iOS FocusIR for Android

A simple line-drawn icon of a sealed package with an airplane above it and location pins labeled CN and UK on either side, on a white background.

Tracked delivery

Orders are dispatched directly from Guide Sensmart using DHL or UPS. Tracking is provided and a signature is required on delivery.

Confirmed lead times

Orders normally arrive in 7–10 working days. Certain lens configurations may require a 30–75 day lead time. Contact us to confirm.

A minimalist black line icon of a document with a folded corner, a globe symbol, a British pound symbol crossed out with a diagonal pen, and a small box outline on a plain white background.

No import charges

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

Manufacturer-backed protection

All orders include a 3-year camera warranty, 10-year infrared-detector warranty and 2-year warranty on supplied accessories.

Guide PT II PT450S FAQs

Clear answers to the most common questions about selecting, ordering and using the PT450S.

The PT450S is designed for professionals carrying out electrical, mechanical, industrial and maintenance inspections who need detailed thermal images, accurate temperature measurements and the flexibility of interchangeable lenses. Its 480 × 360 infrared resolution, 15mK thermal sensitivity and 50Hz frame rate make it well suited to inspecting equipment such as electrical systems, motors, pumps, bearings, machinery, HVAC equipment and other industrial assets.

If you regularly need to resolve smaller targets at greater distances, the PT650S provides a higher 640 × 512 infrared resolution. For demanding inspections where maximum image detail and long-range target identification are critical, the PT870S offers 1280 × 1024 resolution.

The best configuration depends on the equipment you inspect and the distances you typically work from. The standard lens is a versatile choice for general industrial and electrical inspections. Wide-angle lenses are useful when you need to capture large equipment or confined spaces, while medium telephoto and telephoto lenses provide greater detail when inspecting smaller or more distant targets.

The PT450S also supports macro, TwinView DFOV and high-temperature lens options, allowing the camera to be configured around your particular inspection requirements.

Yes. The PT450S uses an interchangeable-lens system, so you are not locked into the lens configuration you purchase initially. Additional lenses can be added later as your inspection requirements develop, allowing one camera to cover a wider range of applications.

Contact Corey Technical before purchasing another lens so we can confirm compatibility, calibration requirements and availability.

The PT450S measures from -40°C to 150°C and 0°C to 650°C, with automatic switching between measurement ranges. An optional high-temperature lens extends measurement capability to 2500°C for suitable high-temperature applications.

These specialist configurations are only necessary when target temperatures may exceed 650°C.

The PT450S has a 480 × 360 infrared detector and can produce super-resolution images up to 960 × 720. Its 15mK thermal sensitivity helps reveal relatively small temperature differences, while the 50Hz frame rate provides a fluid live thermal image when scanning equipment.

The PT450S can help identify abnormal heat patterns associated with electrical and mechanical problems, including overheating connections, unevenly loaded components, motor abnormalities, bearing issues, pump problems and other developing faults.

Thermal imaging does not by itself diagnose the cause of every fault, but it gives you temperature information that can help identify abnormalities quickly and decide where further investigation or maintenance is required.

Yes. The PT450S stores thermal images with temperature information and is compatible with Guide's ThermoTools PC software and FocusIR mobile software for image analysis and reporting. This allows captured inspections to be reviewed and analysed after the site visit.

No. The PT450S operates as a complete standalone thermal camera, allowing images and radiometric video to be captured, reviewed, analysed and stored directly on the device.

Guide ThermoTools for Windows supports more detailed analysis and report preparation, while the FocusIR app supports compatible mobile viewing, transfer and analysis workflows. Both Thermotools and FocusIR are free to use. No ongoing subscription is required to operate the camera.

Yes. All Guide's thermal cameras and lens configurations available at Corey Technical are prepared by Guide Sensmart and supplied with a manufacturer calibration certificate.

The PT450S will arrive with a calibration certificate and inspection report, along with the batteries, charger, cables, SD card, carrying case and other standard accessories. It is supplied ready for professional thermal inspection.

If your contracts or quality procedures require a particular accredited or UKAS-traceable calibration service, contact Corey Technical before ordering so the requirement can be checked and quoted separately.

Orders are dispatched directly from Guide Sensmart in China using DHL or UPS, with tracking and signature on delivery.

Available configurations normally arrive within 7–10 working days. Certain camera and lens combinations may require a 30–75 day lead time; the expected window will be confirmed for your selected configuration.

Corey Technical covers import VAT, customs clearance and related import costs. You will not receive an additional import bill on delivery.

The PT450S includes a 3-year manufacturer-backed camera warranty, a 10-year infrared-detector warranty and a 2-year warranty covering the selected lens and supplied accessories.

Corey Technical manages the warranty process with Guide Sensmart, including assessment, repair or replacement where applicable. Contact us before returning any equipment so the correct process can be arranged.

Contact Corey Technical within 14 days of delivery if you wish to request a non-fault return. The camera must be unused, complete and in its original condition with all packaging and accessories. Returns must be authorised before anything is sent.

If a fault develops, contact us with the order number, serial number and details of the issue. Faults outside the return period are handled through the applicable warranty, without affecting any statutory rights that apply to the purchase.

Need help before ordering?

Tell us your application, target size and working distance. We’ll help confirm the most suitable camera and lens configuration.

Ask for product advice Request a quote

See Guide Sensmart cameras in detail

Watch official Guide Sensmart videos covering the PT II and Hammer Series, from camera operation and measurement setup to Super Resolution and supplied equipment.
